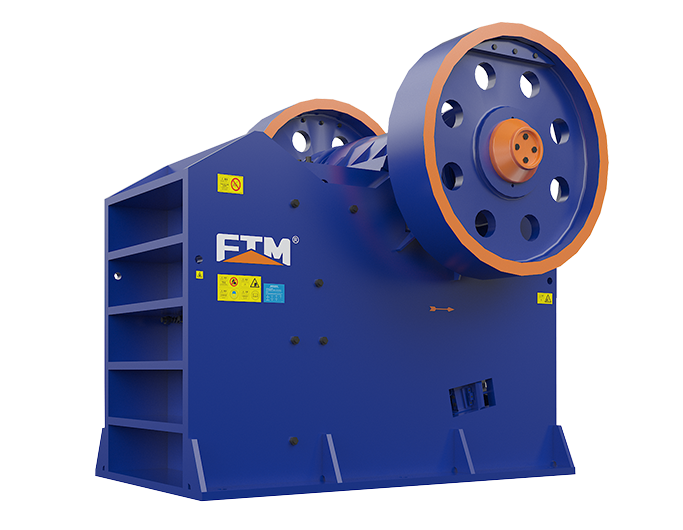

PEY Series Hydraulic Jaw Crusher

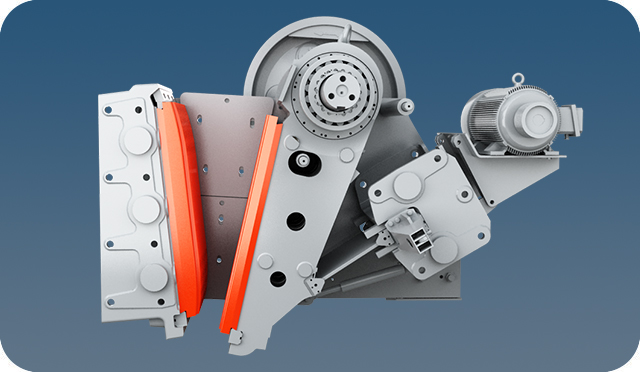

The hydraulic jaw crusher is a double-cylinder hydraulic compound pendulum jaw crusher developed on the basis of jaw crusher. The whole machine adopts full hydraulic operation and is mainly composed of three parts: main engine, hydraulic protection device and electric control cabinet. The crusher has overload protection function, and can crush materials with extremely strong and extremely hard foreign materials, which has large and stable processing capacity and high safety.

Are you interested in our machines? Get Quotation
PEY Series Hydraulic Jaw Crusher

Brief In PEY Series Hydraulic Jaw Crusher

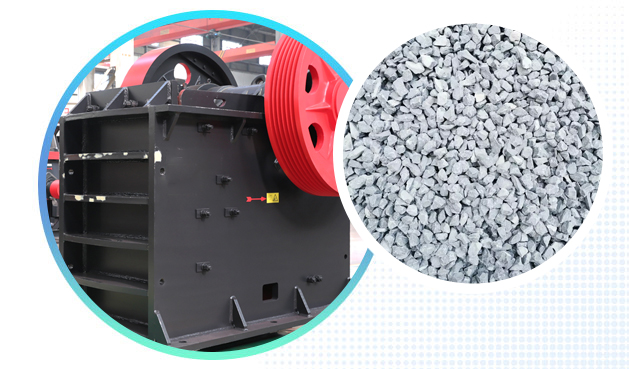

The hydraulic jaw crusher can crush all kinds of limestone, pebbles, dolomite, marble, iron ore, granite, basalt, etc. It is widely used in sand and gravel yards, mining and stone crushing plant, concrete mixing stations and other fields. Its feeding size is 250mm-630mm, output size is 20~150mm, and production capacity is 30-220t/h.

The equipment is designed with new technology, and the structure is more compact and simple, which simplifies the operation process, reduces the workload of the field workers, and is more convenient to install. The hydraulic system enhances the crushing automation ability and makes the stone crushing easier. The hydraulic jaw crusher has the advantages of simple structural design, low operating cost and convenient maintenance.

Technical Data

Model PEY-400x600 PEY-500x750 PEY-600x900 PEY-750x1060


Size of feeding port(mm) 400x600 500x750 600x900 750x1060 300x1300
Max. Feeding size (mm) 340 425 500 630 250
Discharging size(mm) 40~90 35~100 75~125 80~150 20~100
Eccentric shaft speed 30 255 250 255
Handling capacity(t/h) 30~65 50~120 80~200 120~220 40~100
Power of main motor(KW) 30 55 75 110 75
Hydraulic cylinder working pressure:5-7MPa
ylinder diameter:Φ250mm
Piston stroke:160mm
working pressure:5-8MPa
ylinder diameter:Φ320mm
Piston stroke:200mm
working pressure:11MPa
ylinder diameter:Φ400mm
Piston stroke:320mm
working pressure:5-8MPa
ylinder diameter:Φ320mm
Piston stroke:200mm
Dimensions (L x W x H) 3030x1350x1600 3300x1900x2100 3955x3360x2398 4980x2500x3100 4050x3420x1850
Weight(kg) 9480 16200 23400 37800 18200


1. The hydraulic jaw crusher has overload protection function, which effectively solves the problem of blockage in steel slag crushing, and can realize non-stop production.

2. The size range of the discharge port can be adjusted, and the deep V cavity type design can increase feeding amount and enhance the crushing capacity.

3. With precision-machined parts and sealed broken space, the equipment has long service life and reduces dust flying out.
