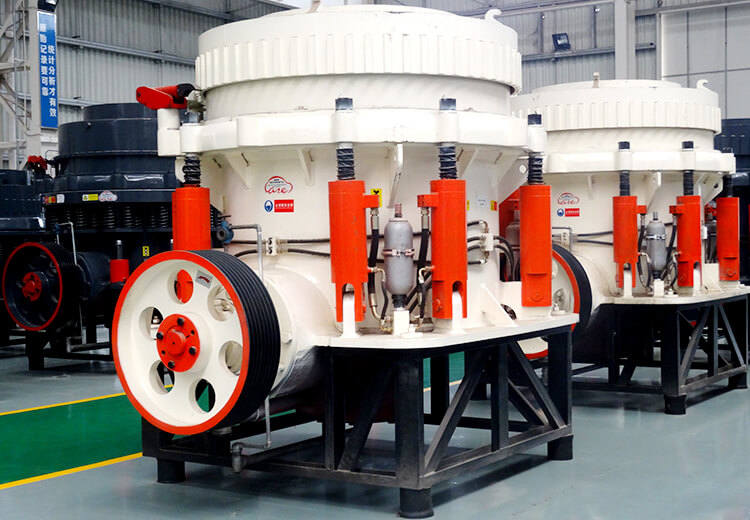

HXGYS series hydraulic cone crusher is the latest model of our company (Henan Fote Heavy Machinery Co., Ltd.). It combines the advantages of single cylinder cone crusher and PSG cone crusher, and it adopts a more advanced design concept. Better crushing frequency and uneven distance are used, so the content of the fine grains is higher in crushing products. And the content of the discharge granules smaller than the closed side can reach 80%, which can significantly improve the processing capacity of the subsequent processes and reduce the general energy consumption.
The hydraulic cone crusher is widely used in mining, building materials, transportation, energy, chemical and other industries. It is suitable for various ores and rocks with medium and medium above hardness, such as quartz stone, river pebble, calcite, dolomite, granite, basalt. Iron ore, limestone, diabase, etc. The production capacity is 36-650t/h.
The perfect combination of high performance crushing cavity and high crushing frequency improve its processing capacity greatly. Because of adopting laminated crushing principle, most of stone crushing machines are cube shape, and the needle-like material is greatly reduced. The hydraulic cone crusher has a simple structure, is convenient for operation and maintenance, and the discharge port is convenient and quick to adjust. In particular, the liner is easy and quick to change, reducing downtime. Under normal use, the rate of equipment's trouble-free operation will exceed 85%.
Model | Cavities | Broken cone big end diameter(mm) | Feeding Size(mm) | Max.feeding Size(mm) | Adjusting Range of Discharge Opening(mm) | Processing capacity(t/h) | Power(kw) | Weight of main machine(t) |
GYS 300 | C1 | 910 | 175 | 140 | 13-38 | 81-180 | 90 | 10 |
C2 | 102 | 80 | 9-22 | 60-180 | ||||
F1 | 76 | 60 | 3-16 | 36-145 | ||||
F2 | 41 | 30 | 3-13 | 36-130 | ||||
GYS 400 | C1 | 1200 | 241 | 190 | 19-51 | 207-400 | 200 | 20 |
C2 | 210 | 168 | 16-38 | 162-350 | ||||
C3 | 137 | 110 | 13-31 | 126-310 | ||||
F1 | 105 | 85 | 8-25 | 109-230 | ||||
F2 | 89 | 70 | 6-16 | 82-230 | ||||
F3 | 64 | 50 | 3-16 | 40-230 | ||||
GYS 500 | C1 | 1600 | 269 | 215 | 25-64 | 280-650 | 280 | 40 |
C2 | 241 | 190 | 22-51 | 258-450 | ||||
C3 | 209 | 170 | 16-38 | 180-410 | ||||
F1 | 133 | 105 | 10-25 | 162-355 | ||||
F2 | 89 | 70 | 6-19 | 136-330 | ||||
F3 | 70 | 55 | 5-13 | 90-300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
1.Automatic control of overload protection and cleaning chamber function by using bumper;
2.Fully automatic control system is easy for remote and side-by-side control;
3.Hydraulic lubrication oil station with small volume and simple wiring;Discharge opening is adjusted by hydraulic cylinder;
4.The dust collector is sealed with dry oil. Reliable structure and low failure rate.
