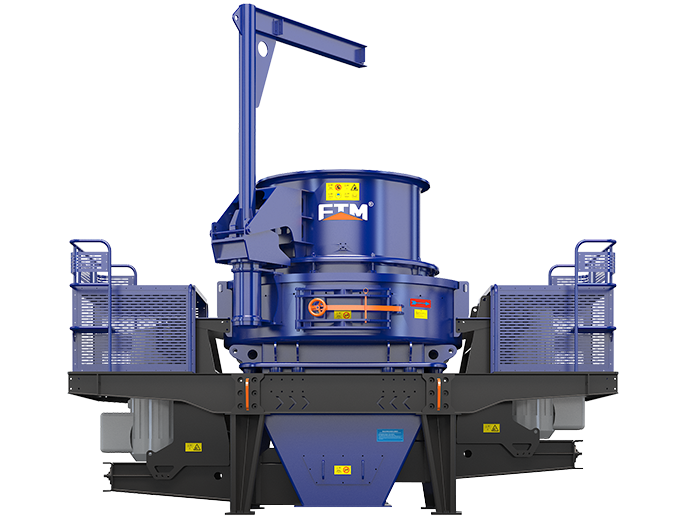

Sand Making Machine

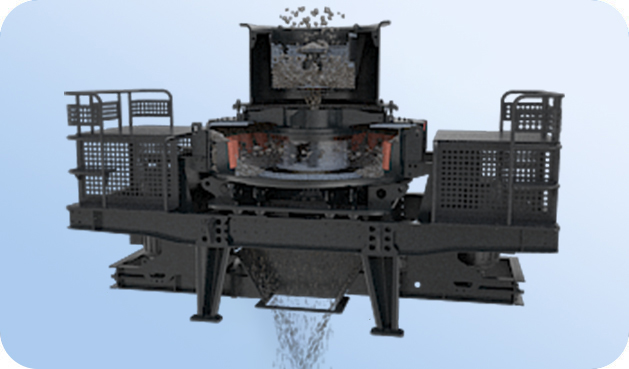

The sand making machine is also called sand maker. It is suitable for the crushing and shaping of soft or medium hard and extremely hard materials. The processed materials are cubed and the grain shape is good. It is mostly used in sandstone production lines and stone production lines. The sand making machine can realize the conversion of the working principle of “rock on rock”and “ rock on breaker plate”. The sand making equipment produced by FTM mainly include: HVI impact sand making machine, HX sand making machine, VSI crusher, TK sand making machine.

Are you interested in our machines? Get Quotation
Sand Making Machine
Welcome to Visit Factory

Why FTM Sand Making Machine ?

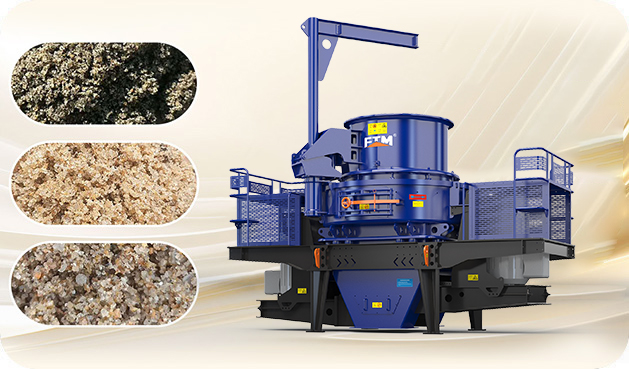

Sand making machine is widely used in medium and fine crushing of high hardness and extra hard materials such as quartz stone, pebbles, basalt, calcite, limestone, dolomite, granite, iron ore, concrete aggregate, etc. in mines, cement, sand making technology in building materials, chemical industry, railway and other industries. It is ideal production equipment for artificial sand, cushion material, asphalt concrete and cement concrete aggregate. It is especially suitable for processing construction sand and road sand.

The sand making machine has higher output efficiency than other types of crushers. It can not only process all kinds of natural stone materials, but also can make mechanical sand with waste concrete, waste lime, other waste residue and other materials, effectively alleviating the shortage of sand and gravel aggregates because of the shortage of natural yellow sand resources. Strong sealing, advanced pulse dust removal device can effectively control the emission of sand dust and reduce the pollution of air, thus achieving green sand production. The product is in the form of a cube with a discharge size of 0-5 mm.

Technical Data

HVI Sand Making Machine

VSI Sand Making Machine

HX Sand Making Machine

Model Sand Shaping Sand Making Sand Shaping Sand Making Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  70-140  130-230  2×75
HVI 0818 <30 <35 80-190 165-283 2×90
HVI 0922 <35 <40 105-145 220-330 2×110
HVI 0926 <35 <40 120-190 240-380 2×132
HVI 1032 <40 <45 181-278 246-356 2×160
HVI 1040 <40 <45 262-284 350-440 2×200
HVI 1250 <45 <50 345-371 414-540 2×250
HVI 1263 <50 <55 453-498 521-585 2×315
Model FTMVSI-7611 FTMVSI-8518 FTMVSI-9526 FTMVSI-1140 FTMVSI-1145 FTMVSI-1150
Capacity
(t/h)
Feed both
at center
 and sides
120-180 200-260 300-380 450-520 500-610 520-650
Feed at
center
60-90 100-130 150-190 225-260 245-355 255-365
Max.feeding
size(mm)
Soft
material
35 40 45 50 50 50
Hard
material
30 35 40 40 45 45
Rotation
speed
(r/min)
1700-1890 1520-1690 1360-1510 1180-1310 1150-1300 1150-1300
Double Motor
power(kw)
4P   110 4P   180 4P   264 4P   400 4P   400 4P   500
Overall dimension
(L×W×H)(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5100×2700×3300 5500×2700×3300 5500×2700×3300
Power supply 380V 50HZ
Lubrication
station
Double
motor
power of
oil pump
2×0.31Kw
Safety
assuance
Double oil pumps assure enough oil supply:automatic
 switch off with no oil stream or pressure,water cooling
in summer,motor heating stare-up in winter.
Overall
dimension
(L×W×H)
(mm)
820×520×1270
Power of oil
 tank heater
2KW
Model
specification
Max.feeding
size
(mm)
Power
(kw)
Rotation
speed of
impeller
(r/min)
Capacity
(t/h)
Overall
dimension
(L×W×H)
(mm)
FTM-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
FTM-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
FTM-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
FTM-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450

Advantages

1. The moisture content of the processing material can reach 8%. The finished product is in the shape of a cube with uniform particle size.

2. The impeller cavity is deep, the stone throughput is increased by 30%, and the input and output sizes are adjustable.

3. The internal flow of the vortex chamber is self-circulating, with less dust and noise below 75 decibels (dB level).

4. All wearing parts are made of high-quality wear-resistant materials, reducing the cost of use by 30%. Stone can form a protective bottom layer, and life expectancy is extended by 1.5-3 times.
