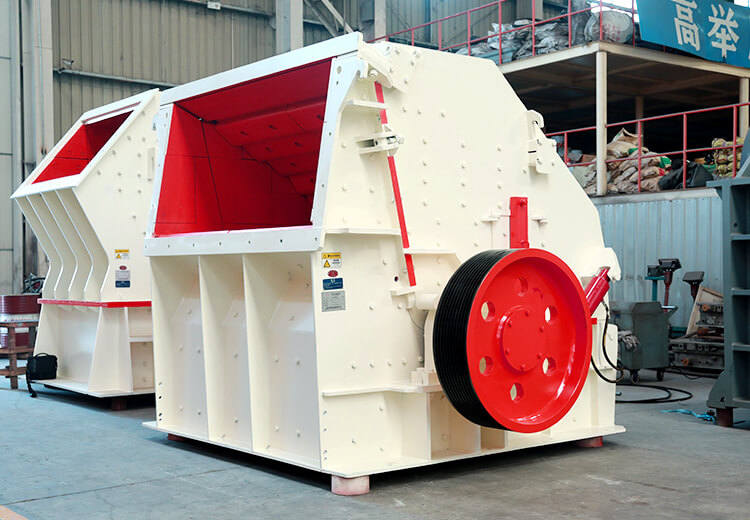

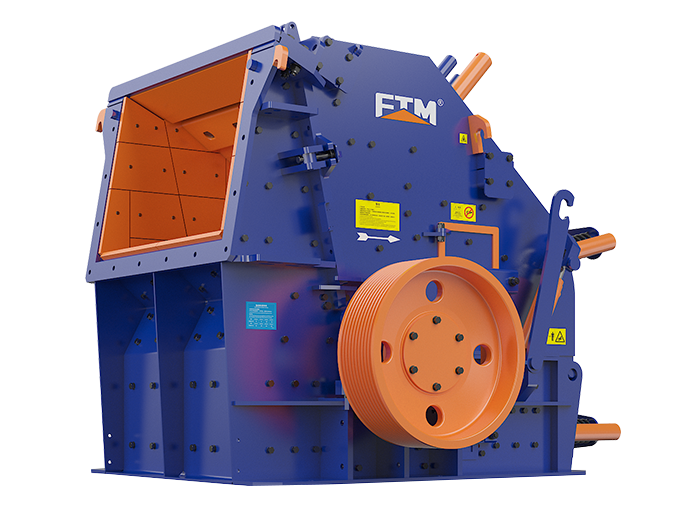

The CI series impact crusher meets the needs of customers for high-yield, low-cost, energy-saving and environmentally friendly products. A large number of new high wear-resistant materials are used, and the performance and processing capacity of the equipment are greatly improved. Lightweight frame, high-precision spindle, high-strength counter-attack and high-wearing plate hammer can handle a variety of crushing modes such as coarse, medium and fine crushing of ore and rock.

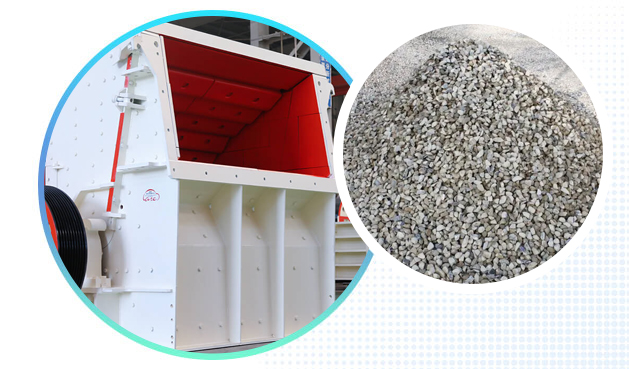

The CI series impact crusher is suitable for stones with medium hardness and low abrasion such as river pebbles, granite, basalt, limestone, quartz, etc. in quarry and gravel, cement, concrete and asphalt recycling, slag recycling and other industries.

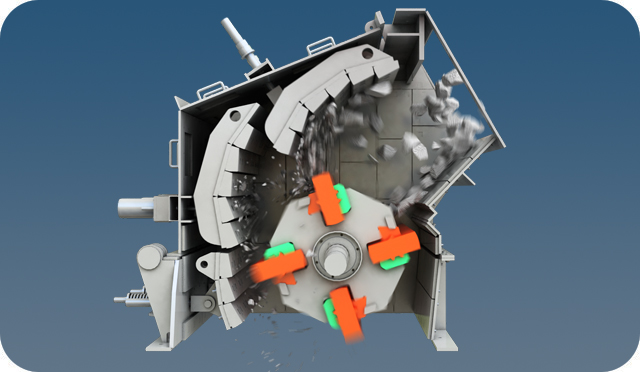

The rugged heavy-duty rotor structure of the CI series impact crusher increases equipment throughput and crushing ratio. The high quality welded construction ensures that the machine can withstand the most impact and achieve good crushing results. The CI1213 impact crusher is a hot sale model of the CI series. Its production capacity is 100-280t/h, the power is 200kw, the rotor specification is φ1200*1300mm, and the feed size can meet the 300mm feeding material.
Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
CI1110 | 250 | 160 | 60-210 | 2826×2087×2285 |
CI1213 | 300 | 200 | 80-280 | 2903×2530×2411 |
CI1316 | 300 | 250 | 100-350 | 3320×2770×2535 |
CI1521 | 350 | 2×(200-250) | 200-600 | 3450×3620×2770 |
Model | Maximum Feeding Size (mm) | Power (kw) | Capacity (t/h) | Dimensions(L×W×H)(mm) |
CI1313 | 600 | 200 | 100-480 | 2972×2560×2937 |
CI1415 | 600 | 250 | 120-600 | 2985×2790×3068 |
CI1620 | 800 | 2×(200-250) | 220-900 | 4261×3480×3780 |
CI2023 | 800 | 2×500 | 400-2000 | 5151×4424×4712 |
1. With ship type hammer and reliable locking structure, the crusher has good impact resistance, anti-wear performance and maintains stable discharge particle size. Optional third counter-attack frame can make the product shape more excellent.
2, A large number of new high wear-resistant materials are used to reduce the wear of wear parts, extend the replacement cycle and save costs.
3. Hydraulically opening and counter-attack plate and plate hammer clearance hydraulic auxiliary adjustment reduce labor intensity and downtime.
4. The equipment is equipped with a variety of safety locking devices to improve safety performance and reduce labor intensity.
