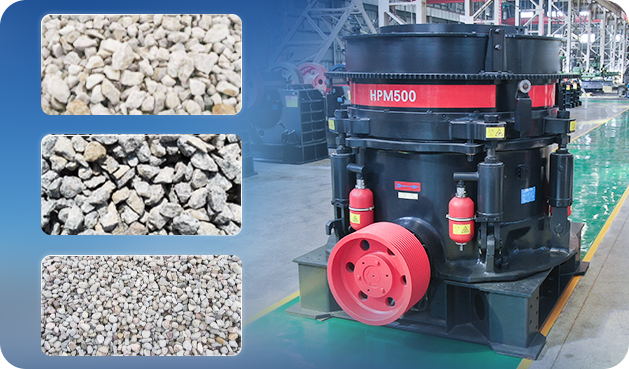

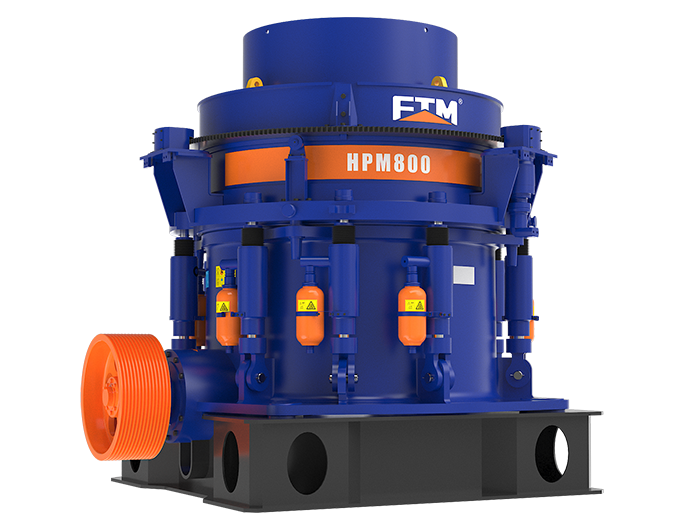

Hydraulic Cone Crusher

Production: 36-650t/h

Feeding size: 35-228mm

Applied material: barite, marble, calcite, kaoline, coal, gypsum, concrete.

If you want to know more product information. You can click on the button on the right to contact us or send us an email (sell@chinaftm.com), we will send you latest price within 24 hours.

Send Inquiry Free Consultation

Small, Medium & Large Machine

factory-direct sale, 100% factory price

Free Customized Advice

Tel: 0086-0371-69606666

E-mail: sell@chinaftm.com

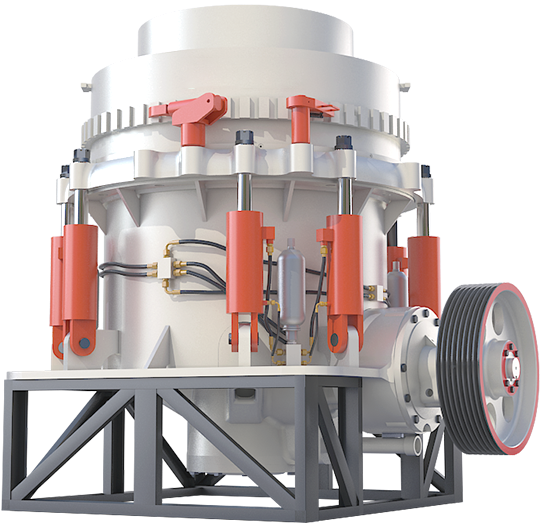

Introduction of Hydraulic Cone Crusher

Full-hydraulic cone crusher enjoys the features of simple structure, low manufacturing cost, high production capacity, convenient maintenance, excellent performance for adjusting hydraulic pressure and protecting itself when being overloaded, easy control, etc.

When motor rotates, belt pulley or coupling is driven by. Under the axial lead, transmission shaft and cone part make the eccentric shaft run periodically. From the feeding mouth, materials enter into crushing cavity and are mutually impacted, crushed or ground by the eccentric shaft and concave wall. Hydraulic-protection system can discharge the obstructions out, when cone crusher has the failures of iron release or cavity jamming. In a word, this system can not only protect the machines, but also lower the failure rate and improve production efficiency.

Technology Data
Model Cavity
Diameter of
large end of
crushing cone (mm)

Adjusting Range of
Discharge  Opening (mm)

Feed Opening Size
of  the Opening
Edge when Recommending
Min. Discharging Gate Opening (mm)

Max.feeding size
(mm)

Processing capacity
(t/h)

Main motor power
(kw)

Machine Weight
(t)
FTMGYS 300 C1 910 13~38 175 150 81~180 6P  90 10
C2 9~22 102 85 60~180
F1 3~16 76 65 36~145
F2 3~13 41 35 36~130
FTMGYS 400 C1 1200 19~51 241 205 207~400 6P  200 20
C2 16~38 210 178 162~350
C3 13~31 137 115 126~310
F1 8~25 105 89 109~230
F2 6~16 89 76 82~230
F3 3~16 64 54 40~230
FTMGYS 500 C1 1600 25~64 269 228 280~650 6P  280 40
C2 22~51 241 205 258~450
C3 16~38 209 178 180~410
F1 10~25 133 113 162~355
F2 6~19 89 76 136~330
F3 5~13 70 60 90~300
