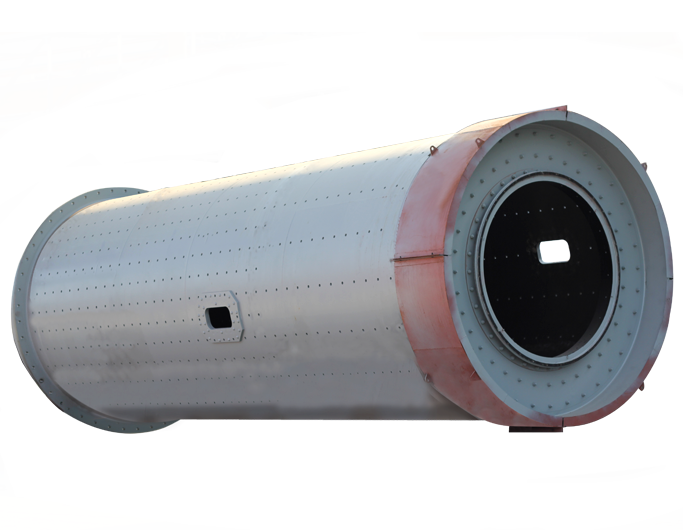

Cement Mill

The cement mill is developed by our company (Henan Fote Heavy Machinery Co., Ltd.,) on the basis of traditional mills. It not only gets rid of the defects of traditional mills but also adds new technologies and performance. The cement grinding equipment can be produced either in a dry process or in a wet process, and can also be operated simultaneously by grinding and drying. The cement grinding equipment produced by our company is characterized by excellent quality and excellent craftsmanship. It has the characteristics of strong adaptability to materials, continuous production, large crushing ratio, and easy fine-speed grinding.

Are you interested in our machines? Get Quotation
Cement Mill

Brief In Cement Mill

The cement mill is one of the important cement equipment. It is the key equipment for the material to be crushed and then crushed. It plays a vital role in the cement production line and cement production process. Compared with the ball mill of the same specification, the output of cement mill has been greatly improved, and it can process limestone, cement clinker, concrete aggregate, activated carbon, and other materials, mainly used in the cement silicate product manufacturing industry.

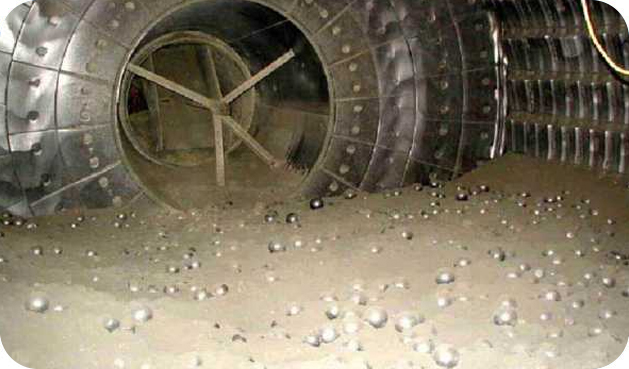

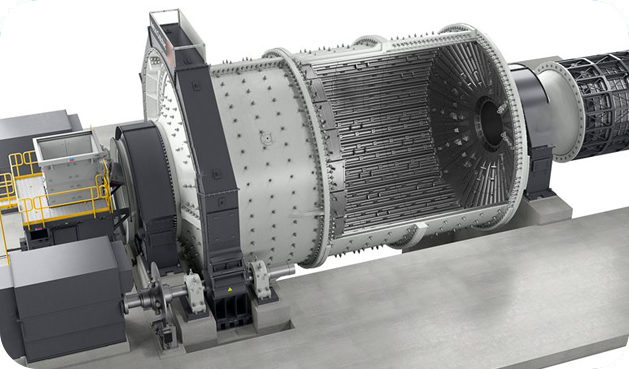

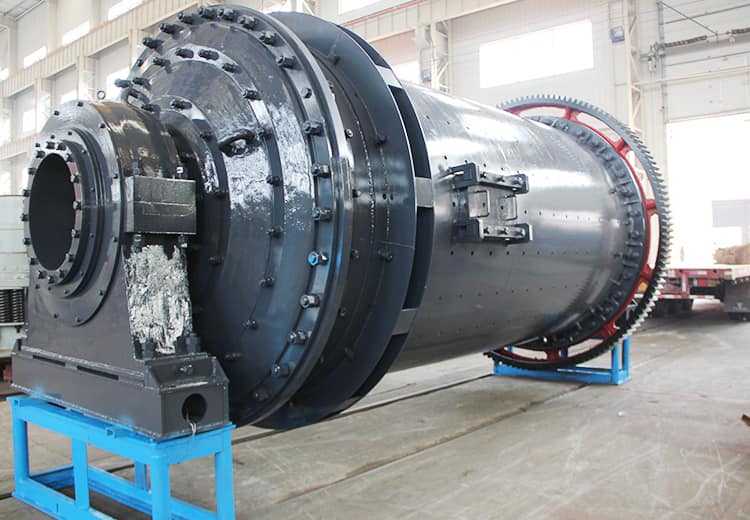

The cement mill is a horizontal cylindrical rotating device with external gear transmission and two bins. The material is uniformly fed into the first chamber of the mill by the feeding device through the hollow shaft of the feeding material. The chamber has stepped lining or corrugated lining, which is equipped with steel balls of different specifications. The rotation of the cylinder generates centrifugal force to bring the steel ball to a certain height and then falls, which causes heavy impact and grinding on the material. After the material reaches the rough grinding in the first bin, it enters the second bin through the single-layer partition plate. The bin is embedded with a flat liner with steel balls inside to further grind the material. The powder is discharged through the discharge raft to complete the grinding operation.

Technical Data

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Open flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Brim D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Brim D110 35.5 630 16-18 114
Φ2.4×13 Open flow Brim D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Brim MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Brim D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Brim D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485

Advantages

1. Wide Application: Cement mills are widely used in cement, silicate products, new building materials, black and non-ferrous metal dressings, and glass ceramics.

2. Large Output & Excellent Products: The output of cement mill can be increased by 15-20%, and the power consumption is reduced by about 10%. In addition, the temperature of the finished product can be lowered by 20-40 °C, and the fineness of the product can be easily adjusted. Therefore, the broken product is not only high in yield but also high in quality.

3. Advanced Accessories: The cement grinding spindle adopts self-aligning to ensure the normal operation of the rotating part. It uses three kinds of lubrication: the oil spoon, the oil ring and the automatic oil station for lubrication, ensuring good lubrication of the cement mill. The bearings used in cement mills are generally equipped with cooling water channels to ensure good working conditions of the bearings.
