Mobile Cone Crusher

The mobile cone crusher is mainly used in the field of fine crushing. In the production of sand and gravel, it produces higher hardness and finer grain sand and gravel products according to different stones and the use of finished products.

Are you interested in our machines? Get Quotation
Mobile Cone Crusher

Brief In Mobile Cone Crusher

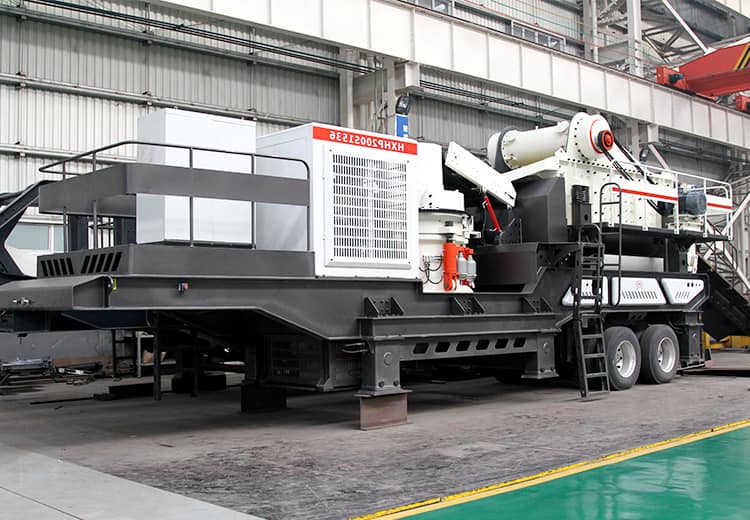

The wheeled mobile cone crusher is composed of a high-efficiency cone crusher, a high-performance vibrating screen, a belt conveyor, a motor and a control box. It is mainly used for recycling of mines, coal mines, garbage and construction waste, earth and stone works, urban infrastructure, roads or construction sites. It is often used to break river pebble, limestone, granite, basalt, diabase, andesite, ore tailings, etc.

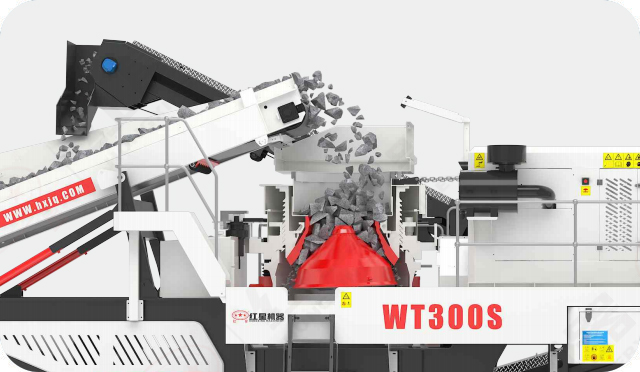

The material is evenly conveyed into the cone crusher through the feeder, and after the material is initially crushed by cone crusher, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material. The finished products are output by the conveyor for continuous crushing. The wheeled mobile cone crusher can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of the material directly, and it can be used with other crushing equipments, and the operation is convenient and flexible.

Technical Data

Model FTM3S185GYS300 FTM3S216GYS400 FTM3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160

Advantages

1.The machine is compatible with two kinds of crushing processes: “first crushed and then sieved” and “first sieved and then crushed”, which has strong adaptability;

2.When the machine is changed, the noise is low, the dust is less, and various strict environmental protection requirements are met;

3.The chassis is specially machined to adapt not only to ordinary roads, but also to the rugged roads of the crushing plant, which can easily cope with all kinds of harsh working environments.
