Micro Powder Mill-FTM Machinery

Brief Introduction

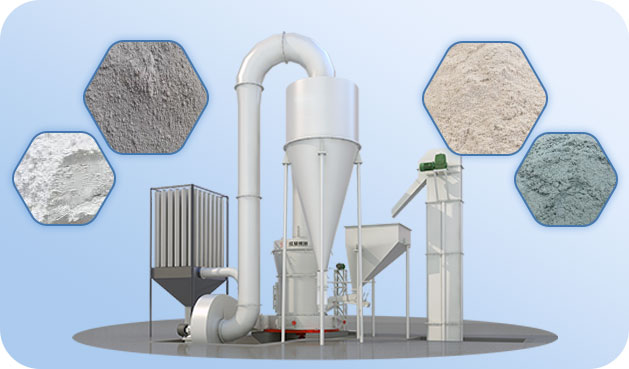

The three-rings and medium speed micro powder mill is a new product developed by our company, it is the advanced dry type fine grinding equipment for non-metal super-fine powder. The material's crushing and powder's classification are put in one machine, The material's crushing and product's classification have been proceeded in one closed system, and dusty air is handled by a dust collector, so there is no pollution.

The powder mill is suitable for the super fine grinding of all kinds of non-flammable and non-explosive material whose Mohs hardness is below 5 grades, such as calcium carbonate, barite, aedelforsite, kaoline, rare earth ore, hematite, talc, feldspar, slag and so on.

Working Principle

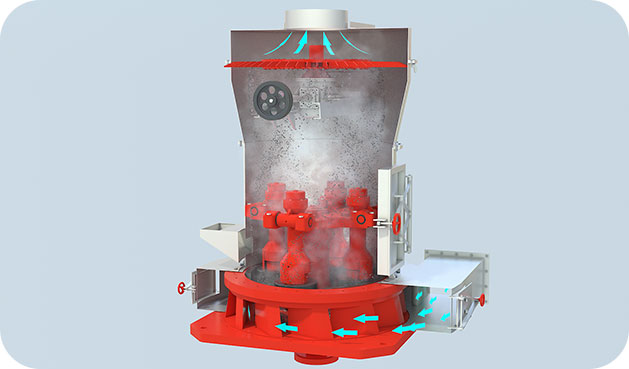

During the operation, the main machine drives the main shaft and each layer of the turntable through the reducer to rotate, so that dozens of ring rolls roll and rotate in the grinding ring raceway. After the big material is crushed into the required particle size by the crusher, it is sent to the storage bin by the hoist, and then the material is evenly, quantitatively and continuously sent to the middle of the upper turntable by the vibrating feeder, and the material is scattered to the periphery under the action of centrifugal force, and falls into the raceway of the grinding ring by the ring roll, rolling and grinding. After the material is pulverized by the first layer, it falls into the second layer for finer grinding, and then enters the third layer of milling to achieve the desired particle size.

Learn More

Advantages

This machine adopts graded grinding, the fineness of the finished product is high, and the final fineness can reach d97≤5μm at one time.
01
There are no rolling bearings and no screws in the grinding chamber. The bearing and its seal is vulnerable and the screw is not easy to loosen and destroy the machine, and the work is safe and reliable;
02
In the situation of the same fineness of materials and finished products, its wear parts have a longer service life than ordinary mills, generally up to one year;
03
The material's crushing and product's classification is proceeded in one closed system, and dusty air is handled by dust collector without pollution;
04

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Parameter Model	Micropowder93	Micropowder92	Micropowder87	Micropowder76	Micropowder66
Feeding size(mm)	≤25	≤25	≤20	≤20	≤15
Size of finished product(mm)	0.125-0.010	0.125-0.033	0.125-0.010	0.125-0.033	0.125-0.010
Shift output of different material fineness(t)	0.8-12	0.6-10	0.4-8	0.3-6	0.2-4
Rotate speed of pulverizing ring(r/min)	140	148	160	170	180
Diameter of pulverizing ring(mm)	1006	973	907.5	850	725
Diameter of pulverizing roller(mm)	300	300	270	250	210
Height of pulverizing roller(mm)	160	160	150	150	150
Main Motor(kw)	Y225M-8-30	Y225M-8-22	Y225M-8-22	Y225S-8-18.5	Y225M-8-15
Fan Motor	Y180M-2-22	Y180L-4-22	Y160L-4-18.5	Y160L-4-15	Y160L-4-11
Analyzer Motor	YCT180M-4A-4	YCT180M-4A-4	YCT180M-4A-4	YCT160-4B-3	YCT160-4B-3

Why Choose FTM

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.

If you have any doubts about products, Please contact us, we will reply to you within 24 hours/provide you with the latest quotes.
