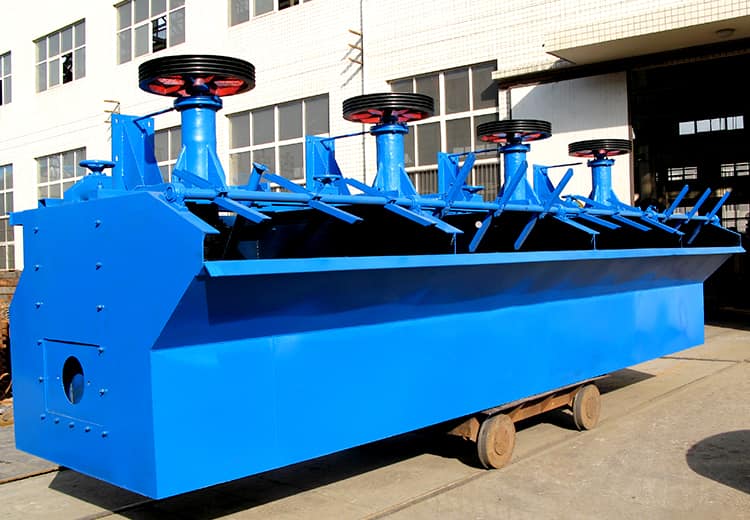

Flotation Machine

FTM designed flotation machine has SF flotation machine, BF flotation machine, XCF flotation machine, and KYF flotation machine. Different types of flotation machines have different characteristics, and customers can choose according to actual needs.

Are you interested in our machines? Get Quotation
Flotation Machine
Flotation Machine

Brief In Flotation Machine

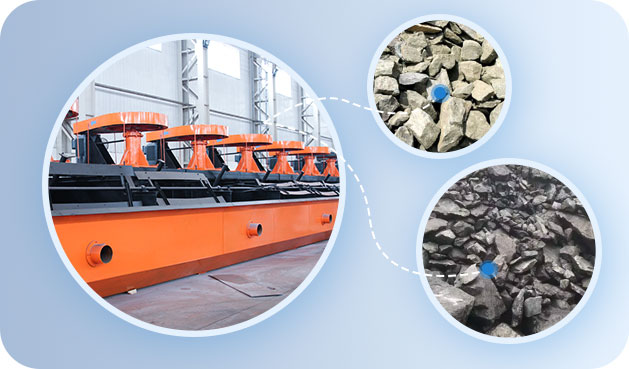

The flotation machine is used to separate non-ferrous metals, ferrous metals, rare metals, and non-metallic minerals such as copper, lead, zinc, nickel, and molybdenum, after rough selection, sweeping, selection and reverse flotation operations, for useful minerals.

The SF flotation machine is characterized by long lifespan of consumable parts and is favorable for flotation of coarse-grained minerals. The BF-type flotation machine features large circulation of pulp, moderate agitation, a wide range of particle sizes that can be treated, and high recovery rate of ore dressing; XCF type / KYF type flotation machine has strong mixing ability, simple structure, uniform air dispersion, good gas-slurry combination, and little tail sand deposition. It can be combined with KYF/XCF flotation machine as a suction tank.

Technical Data

SF Series Flotation Machine

BF Series Flotation Machine

KYF Series Flotation Machine

XCF Series Flotation Machine

Category Specification
Model		 Effective
cubage
（m³）		 Processing
capacity
（m³/min）		 Main shaft     loam board Dimensions
(L×W×H)
（m）		 Single
 trough
Weight
（t）
Power
（kw）		 Rotate
speed
（r/min）		 Rotate
 speed
（r/min）		 Power
（kw）
XJK type
flotation
machine		 XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 0.7×0.7×0.7 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 0.90×0.82×0.85 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1.75×1.6×1.1 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2.2×2.2×1.2 3.6
SF type
flotation
machine		 SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 0.7×0.7×0.75 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 0.9×0.82×0.95 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.1 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1.75×1.6×1.15 2.6
SF-4 4 2-4 15 220 25 1.5 1.85×2.05×1.2 2.9
SF-8 8 4-8 30 191 25 1.5 2.2×2.9×1.4 4.2
SF-10 10 5-10 30 191 25 1.5 2.2×2.9×1.7 4.5
SF-20 20 5-20 30×2 191 25 1.5 2.85×3.8×2 9.9
JJF type
flotation
machine		 JJF-2 2 1-3 7.5 443 25 1.5 1.4×1.4×1.1 1.7
JJF-4 4 2-4 11 305 25 1.5 1.6×2.15×1.25 2.4
JJF-8 8 4-8 22 233 25 1.5 2.2×2.9×1.4 4.5
JJF-10 10 5-10 22 233 25 1.5 2.2×2.9×1.7 4.9
JJF-16 16 5-16 30 180 25 1.5 2.85×3.8×1.7 8.0
JJF-20 20 5-20 37 180 25 1.5 2.9×3.8×2.0 10.5
Model Trough cubage
（m³）		 Inside dimensions
（L×W×H）
（m）		 Air suction amount
（m³/㎡·min）		 Power
（kw）		 Motor model Processing capacity
（m³/min）		 Single trough weight
(t)
BF-0.37 0.37 0.74×0.74×0.75 0.9～1.05 1.5 Y90L-4 0.2～0.4 0.5
BF-0.65 0.65 0.85×0.95×0.9 0.9～1.10 3.0 Y132S-6 0.3～0.7 1.0
BF-1.2 1.2 1.05×1.15×1.10 1.0～1.10 5.5
4.0		 Y132M2-6
Y132M1-6		 0.6～1.2 1.4
BF-2.0 2.0 1.40×1.45×1.12 1.0～1.10 7.5 Y160M-6 1.0～2.0 1.8
BF-2.8 2.8 1.65×1.65×1.15 0.9～1.10 11 Y180L-8 1.4～3.0 2.2
BF-4.0 4.0 1.9×2.0×1.2 0.9～1.10 15 Y200L-8 2～4 2.6
BF-6.0 6.0 2.2×2.35×1.3 0.9～1.10 18.5 Y225S-8 3～6 3.3
BF-8.0 8.0 2.25×2.85×1.4 0.9～1.10 22
30		 Y225M-8
Y250M-8		 4～8 4.2
BF-10 10 2.25×2.85×1.7 0.9～1.10 22
30		 Y225M-8
Y250M-8		 5～10 4.7
BF-16 16 2.85×3.8×1.7 0.9～1.10 37
45		 Y280S-8
Y280M-8		 8～16 8.4
BF-20 20 2.85×3.8×2.0 0.9～1.10 37
45		 Y280S-8
Y280M-8		 10～20 8.7
BF-24 24 3.15×4.15×2.0 0.9～1.10 45 Y280M-8 12～24 9.2
Model KYF-1 KYF-2 KYF-3 KYF-4 KYF-8 KYF-16 KYF-24 KYF-38
Chute Dimensions Length（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Width（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Height（mm） 1100 1250 1400 1500 1950 2400 2900 3400
Single  effective Weight（t） 1.1 1.5 1.9 2.3 3.6 5.9 9.9 15.1
Effective cubage（m³） 1 2 3 4 8 16 24 38
Production Capacity calculated by slurry volume(m³/min) 0.2-1 0.4-2 0.6-3 1.2-4 3—8 4—6 4—24 10—38
Main shaft motor Model Y132M1-6 Y160M2-8 Y160L-8 Y180L-8 Y200L-8 Y250M-8 Y250M-8 Y280S-8
Power（kw） 4 5.5 7.5 11 15 30 30 37
Rotate speed(r/min) 960 720 720 970 730 730 730 740
Diameter（mm） 340 410 480 550 630 740 800 880
Height（mm） 215 256 300 340 390 460 — 545
Rotate speed(r/min) 281 247 219 200 175 160 150 138
Circular velocity(m/s) 5 5.3 5.5 5.76 5.77 6.7 6.25 6.36
Loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power（kw） 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
Loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter（mm） 500 500 580 600 600 700 700 500
Wind pressure of fan（kpa） ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³/㎡·min) 2 2 2 2 2 2 2 2
Model XCF-1 XCF-2 XCF-3 XCF-4 XCF-8 XCF-16 XCF-24 XCF-38
Dimensions Length（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Width（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Height（mm） 1100 1250 1400 1500 1950 2400 10819 3400
Single Effective Weight（t） 1.2 1.7 2.3 2.7 3.9 6.6 8.0 16.8
Effective cubage（m³） 1 2 3 4 8 16 24 38
Production Capacity calculated by slurry volume(m³/min) 0.2—1 0.4—2 0.6—3 1.2—4 3—8 4—16 4—24 10—38
Main shaft motor Model Y132M2-6 Y160M-6 Y160L-6 Y180L-6 Y200L2-6 Y280S-8 Y280S-8 Y280S-6
Power（kw） 5.5 7.5 11 15 22 37 37 45
Impeller Rotate speed(r/min) 960 970 970 970 970 740 740 980
Diameter（mm） 400 460 540 620 720 860 950 —
Height（mm） 155 175 207 247 321 349 — —
Rotate speed(r/min) 358 331 266 215 185 160 153 —
Circular velocity(m/s) 7.5 7.5 7.5 7 6.97 7.6 7.6 7.4
loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power（kw） 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter（mm） 500 500 580 600 600 700 700 700
Wind pressure of fan （kpa） ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³/㎡·min) 2 2 2 2 2 2 2 2

Advantages

1. The ore particles are well suspended, the flotation index is high. The medium mine does not need a foam pump, and the flotation efficiency is high.

2. High inspiratory capacity, low energy consumption, 30%-50% energy saving than general flotation machines, good pulp circulation, little consumption of chemicals, thereby reducing consumption by 10%-15%.

3. Small footprint, simple operation control, and convenient adjustment.

4. The flotation machine has its own high configuration and long service life.
