2000-10000 t/h Production Capacity
100-250 mm Output Size

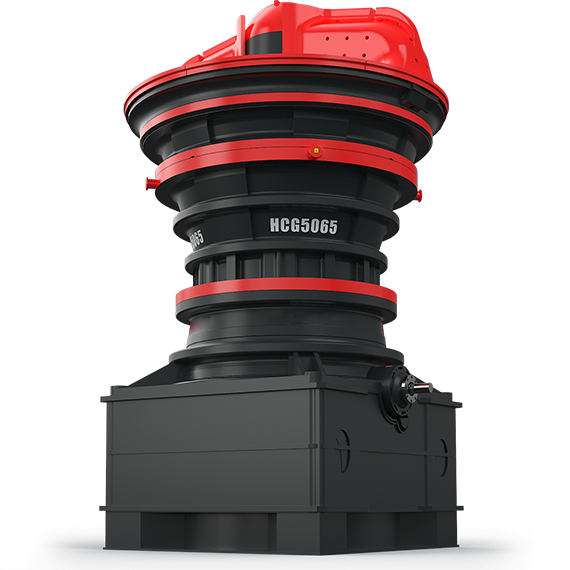

HCG series gyratory crusher is a large-scale crushing machine that uses the crushing cone to circulate, squeeze, split and bend materials in the shell cone cavity, and roughly crushes ores or rocks of various hardness. It is a kind of cone crusher, mainly used for coarse crushing of ore.
Gyratory crushers are commonly used for crushing ores or rocks of various hardness such as granite, concrete, basalt, limestone, dolomite, iron ore, manganese ore, gold ore, copper ore, etc .
The upper end of the main shaft equipped with the crushing cone is supported in the bushing in the middle of the beam, and the lower end is placed in the eccentric hole of the bushing. When the bushing driven by the pulley and the bevel gear rotates, the crushing cone is eccentric around the center line of the machine. The gyratory movement makes the surface of the crushing cone sometimes close to and sometimes away from the surface of the fixed cone, so that the materials entering the crushing chamber are continuously squeezed and bent to be crushed, and the crushed materials are discharged from the bottom of the crushing chamber by their own weight.
Chat Online
HCG series gyratory crusher integrates mechanical, hydraulic, electrical, automation, intelligent control and other technologies, benchmarking the most advanced gyratory crusher in the world. It is a new type of coarse crushing equipment with large capacity, high efficiency and intelligence. Compared with traditional gyratory crusher, it has higher crushing efficiency, lower use cost, convenient maintenance and adjustment, and simple intelligent control. It is the best choice for users who demand large output, low maintenance rate and high stability.
Standard displacement sensor, can directly display the position of the spindle, hydraulic cylinder automatic pressure adjustment dis- charge port to compensate liner wear, ensure stable particle size,improve productivity.
The crushing chamber with large inclination angle and long crushing surface enable the crusher to have super high crushing capacity. The super large crushing chamber is easy to crush stones, which improves the crushing efficiency and maximizes the service life of the lining plate.
The spindle is forged in one piece, avoiding the danger of loose moving cones, thus reducing downtime. The upper shaft neck is enlarged with a large radius arc and polished, which has extraordinary strength and can adapt to harsh crushing conditions.
The wear distribution of the whole crushing chamber is more uniform, which reduces the replacement times of lining plate and reduces the production cost.
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Model | Feeding opening size (mm) |
Max.Feeding size (mm) |
Adjustment range of discharge port (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions L×W×H(mm) |
| HCG4265 | 1065 | 900 | 140-175 | 2018-2878 | 400 | 3940×4170×6900 |
| HCG5065 | 1270 | 1050 | 150-175 | 2403-2943 | 400 | 4460×4430×7610 |
| HCG5475 | 1370 | 1150 | 150-200 | 2893-3493 | 450 | 4930×4925×8410 |
| HCG6275 | 1575 | 1350 | 150-200 | 2898-4338 | 450 | 5580×5250×9090 |
| HCG6089 | 1525 | 1300 | 165-230 | 4203-5813 | 630 | 5590×5445×10470 |
| HCG60110 | 1525 | 1300 | 175-250 | 5543-8898 | 1250 | 6200×5940×11390 |
Note: Processing Capacity May Vary With Different Materials And Feeding Sizes.
Gyratory crushers are suitable for use in factories and mining yards with large production volumes. According to experience, if one jaw crusher can meet the production requirements during model selection, use the jaw crusher; if two jaw crushers are required, you should consider choosing a gyratory crusher. Although the initial cost is somewhat high, in the long run, the overall benefit of the gyratory crusher is higher than that of the jaw crusher.
