Brief in Wood Chip Dryer

Wood Chip Dryer is the key economical drying equipment for drying and dewarting wood chips. Wood chip dryer is for wood shavings, wood chips, wood sawdust and other materials.

The moisture inside the wood chips mainly are free water and biological water. Free water is easier to be dewatered, and biological water is difficult to be got rid of. Thus the reasonable inner structurer of the wood chip dryer is necessary so that the wood chip dryer can have better work performance and capacity.

FTM®Wood Chip Dryer can dry the wood chips from moisture 40-50% to moisture about 10% or even lower which is suitable for storage and burning for boiler, or according to the clients' requirements.

Inquire Details

Working Principle of Wood Chip Dryer

The wood is sent to the hopper by a belt conveyor or bucket elevator, and then enters the feeding end through the feeding pipe through the feeding machine of the hopper. The material is added from the higher end, and the heating medium enters from the lower end, and is in countercurrent contact with the material. When the wet material moves forward in the cylinder, it directly or indirectly receives heat from the heating medium, so that the wet material can be dried, and then sent out through a belt or screw conveyor at the discharge end. In addition, dust collectors can also be used to reduce dust in the drying system.

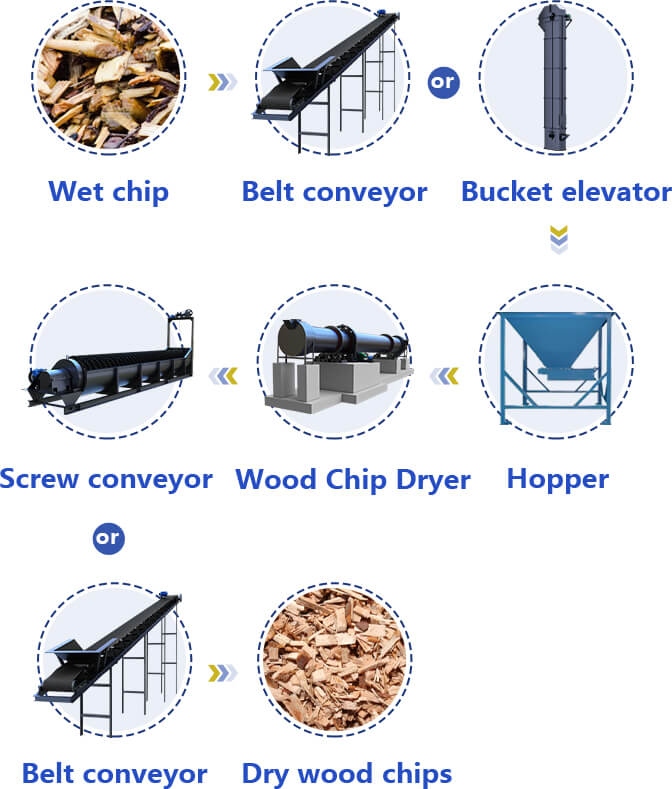

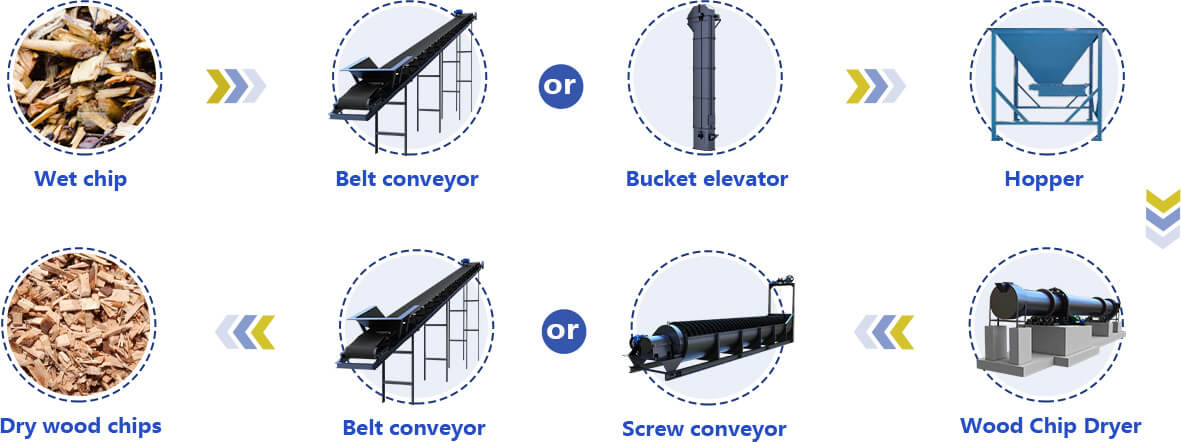

Workflow Chart

Structure of Wood Chip Dryer

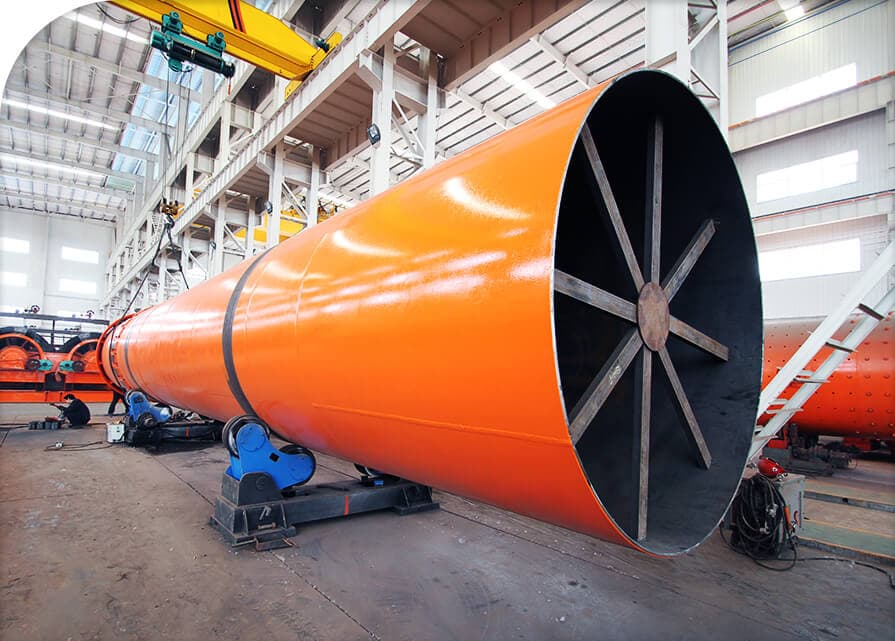

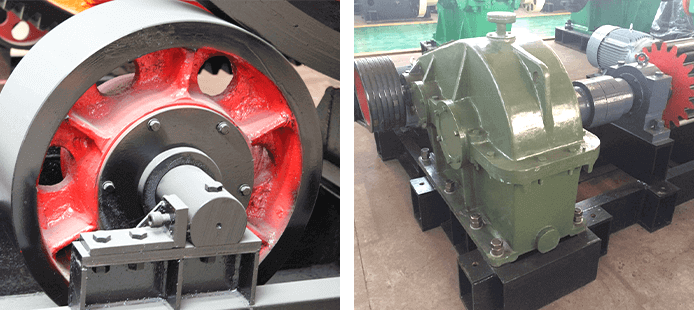

Wood Chip Dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring. The dryer is made up of a large, rotating cylindrical tube, the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.

We can specially design and provide wood chip dryers for customers according to the size of the wood, the moisture content of the input material and the output material, the production capacity, and the heat source, etc. We are looking forward to your cooperation.

Free installation & Technical debugging Get a quote

Heat Source

The heat source used in the dryer is mainly the combustion products for various combustion products, such as LPG, HFO, natural gas, coal, electric energy, etc. At the same time, the selection of the heat source of the dryer also affects the operating cost. Therefore, when selecting the heat source of the dryer, it is necessary for customers to follow the local conditions, the safety of the heat source, environmental protection, the quality requirements of the materials . Note: Temperature control selection: (Manual Control / Automatic Control)
Generally controlled by fuel quantity, you can choose PLC automatic control or manual control.

Advantages

  • 01

    High thermal efficiency, stable drying quality

  • 02

    Long parts life, not easy to wear.

  • 03

    Simple structure, a small footprint.

  • 04

    Wide applicability, flexible temperature control.

  • 05

    Exchange heat fully, lower the energy consumption.

  • 06

    Environmental protection and energy saving.

Technical Parameter

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Φ1.2×8.0
9.0
1.9~2.4
Φ1.2×10
11.3
2.4~3.0
Φ1.5×12
21.2
4.5~5.7
Φ1.5×14
24.7
5.3~6.6
Φ1.5×15
26.5
5.7~7.1
Φ1.8×12
30.5
6.5~8.1
Φ1.8×14
35.6
7.6~9.5
Φ2.2×12
45.6
9.7~12.2
Φ2.2×14
53.2
11.4~14.2
Φ2.2×16
60.8
13.0~16.2
Φ2.4×14
63.3
13.5~16.9
Φ2.4×18
81.4
17.4~21.7
Φ2.4×20
90.4
19.3~24.1
Φ2.4×22
99.5
21.2~26.5
Φ2.6×24
127.4
27.2~34.0
Φ3.0×20
141.3
30.1~37.7
Φ3.0×25
176.6
37.7~47.1
Φ3.2×25
201
42.9~53.6
Φ3.6×28
285
60.8~76.0

Technical parameters of indirect heat dryer:

Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
cubage
(m³)
Φ1.5×15m 1500 500 20.27
Φ1.5×17m 22.97
Φ1.5×19m 25.68
Φ1.8×21m 1800 650 35.91
Φ1.8×23m 39.33
Φ1.8×25m 42.75
Φ2.2×21m 2200 800 58.10
Φ2.2×23m 63.61
Φ2.2×25m 69.15

Hot models: Φ2.4×18, Φ2.2×16, Φ1.8×12

Customer Case

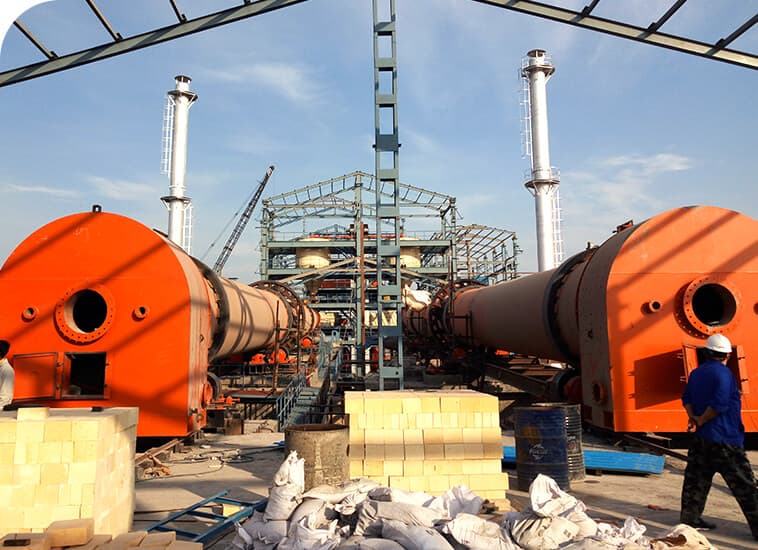

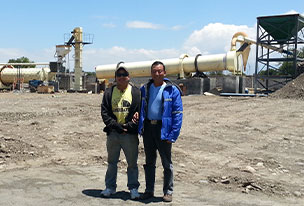

10T/H Wood Chip Dryer in Indonesia

Capacity:10t/H Processed Material:wood chips Model: Φ2.4×18m Power: 37kw Wight: 54t
free Customized Design

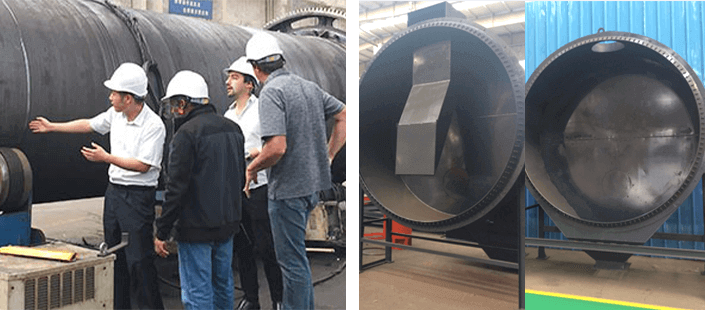

Customer's Feedback:
With a friendly technical discussion with our engineers, we are very confident with its products, and we went to the production site of its another customer after returning to Australia, which persuaded me to choose Fote after seeing the site.

Service & History

Service Guarantees

  • We guarantee that our products are all up to standards set for mining machinery.

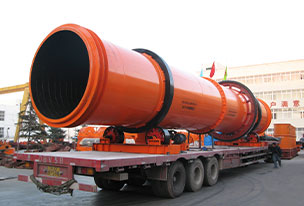

  • We will deliver products timely by contract.

  • We will supply you with installation drawings, specifications and operation manual.

  • We offer lifetime warranty and components for products.

History:

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 30 years since its establishment. It has three production bases in China and its products are sold to more than 160 countries around the world, including India, Kenya, Tanzania, Nigeria, Ethiopia, South Africa, Zambia, Uganda, Ghana, Indonesia, Singapore, Australia, etc.
