Vibrating Screen

Vibrating screen is a new type of circular vibrating screen based on YA and YK type vibrating screens of Henan Fote Heavy Machinery Co., Ltd. It is upgraded and improved according to the customers’ site usage and maintenance experience. The machine adopts the cylinder type eccentric shaft vibration exciter and the partial block to adjust the amplitude. The material sieve line is long and many screening specifications are available.

Are you interested in our machines? Get Quotation
Vibrating Screen

Why FTM Vibrating Screen ?

The vibrating screen is designed for circular motion. It is designed for quarrying stone in quarry. It can also be used for product classification in coal mining, mineral processing, building materials, electric power and chemical industry. The production capacity can reach 75-1300m³/h. The HX vibrating screen is a new type of machine. It adopts eccentric vibration exciter and wheel flexible shaft. It has characteristics of advanced structure, strong vibration force, low vibration noise, easy maintenance and durability.

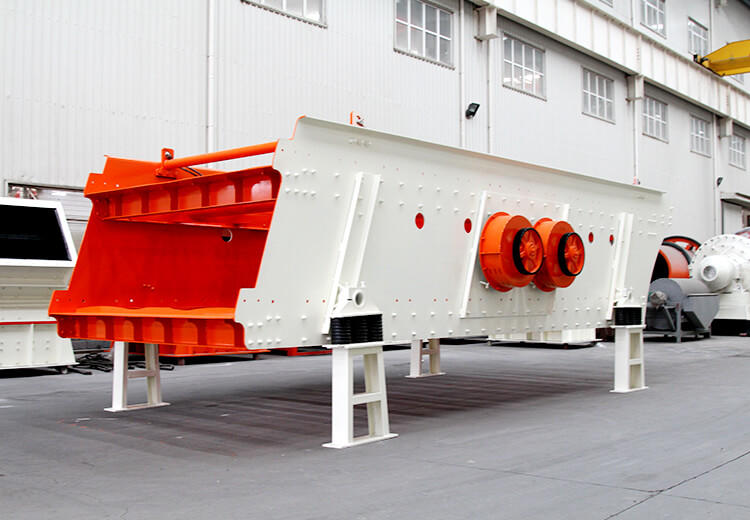

The HX vibrating screen is mainly composed of a sieve box, a vibration exciter, a suspension (or support) device, and an electric motor. The motor is driven by a V-belt to drive the spindle of the exciter to rotate, and the screen box is vibrated due to the centrifugal inertial force of the unbalanced weight on the exciter.

Technical Data

Model Sieve
layer
Sieve
area
(m²)
Mesh
size
(mm)
Max.
feeding
size
(mm)
>Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
>Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 200 8-60 800-970 8 6P   5.5KW 20 1200×2500 2930×1860×870
3YK1225 3 9 4-50 200 10-70 800-970 8 6P   5.5KW 20 1200×2500 3070×1860×1210
2YK1230 2 7.2 4-50 200 12-78 800-970 8 6P   7.5KW 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 200 13-80 800-970 8 6P   7.5KW 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 200 15-86 800-970 8 6P   7.5KW 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 200 16-90 800-970 8 6P   7.5KW 20 1200×3700 4270×1860×1210
2YK1535 2 10.5 5-50 200 20-125 800-970 8 6P   11KW 20 1500×3500 4120×2210×1230
3YK1535 3 15.75 5-50 200 21-125 800-970 8 6P   11KW 20 1500×3500 4360×2210×1610
2YK1545 2 13.5 5-50 200 22-150 800-970 8 6P   11KW 20 1500×4500 5120×2210×1230
3YK1545 3 20.25 5-50 200 22-150 800-970 8 6P   15KW 20 1500×4500 5360×2210×1610
4YK1545 4 27 5-50 200 22-155 800-970 8 6P   15KW 20 1500×4500 5930×2210×2060
2YK1548 2 14.4 5-50 200 22.5-162 800-970 8 6P   11KW 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 200 22.5-162 800-970 11 6P   15KW 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 200 22.5-162 800-970 8 6P   18.5KW 20 1500×4800 6230×2210×2060
2YK1848 2 17.28 5-80 200 25-206 750 8 6P  18.5KW 20 1800×4800 5420×2550×1420
3YK1848 3 25.92 5-80 200 32-276 750 8 6P   18.5KW 20 1800×4800 5660×2550×1780
4YK1848 4 34.56 5-80 200 32-285 750 8 6P   22KW 20 1800×4800 6290×2550×2160
2YK1854 2 19.44 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 200 32-312 800-970 8 6P   22KW 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 200 32-336 800-970 8 6P  22KW 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 200 50-475 970 8 6P   30KW 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 200 50-475 970 8 6P  30KW 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 200 50-497 970 8 6P   37KW 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 200 65-550 970 8 6P   30KW 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 200 70-620 970 8 6P   37KW 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 200 80-680 970 8 6P   45KW 20 2400×6000 7600×3140×2380
2YK2870 2 39.2 5-100 200 120-680 750 8 8P   22×2KW 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 200 180-720 750 8 8P   22×2KW 20 2800×7000 7800×4320×2120
2YK3072 2 43.2 5-100 200 200-700 750 8 8P   22×2KW 20 3000×7200 7800×4520×1750
3YK3072 3 64.8 5-100 200 230-800 750 8 8P   22×2KW 20 3000×7200 8000×4520×2300

Advantages

The screen surface inclination angle is 18°, and the screening efficiency is higher;

The exciter is an eccentric shaft plus an eccentric block structure to provide sufficient vibrating force;

Thin oil is self-lubricating, and the lubricant is replaced once every 3-6 months;

The key parts are designed with a wear-resistant rubber protective layer to extend the service lifespan of the screen.
