The vertical shaft impact crusher is also named as sand maker. It is the high efficient rock crushing equipment with home and international leading level. The machine is developed by introducing the crushing theory and technology from Barmag Company of America and combining the actual situation of sand making. The sand maker has different models: TK sand making machine, VSI sand maker, HVI impact sand maker.
The sand maker can be used to process various rocks, such as pebble, granite, basalt, iron ore, limestone, calcite, quartz, diabase, cement clinker, bauxite, etc. It is especially suitable for sand for construction and gravel for road construction. The feed size of the machine is less than 50 mm. The sand maker has a maximum production capacity of 100t/h.

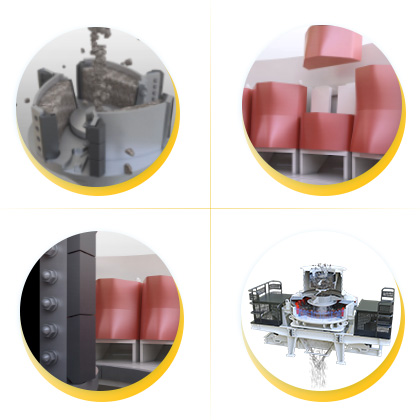

Working principle: Material falls into the fast rotating impellers from the top of machine and crushers with the material distributed around the impeller under the effect of centrifugal force. After the impact with each other, the material is crushed between impeller and cabinet and then discharged from the bottom. It can cycle many times with the close circuit and the screening device will control the granularity of finished products.

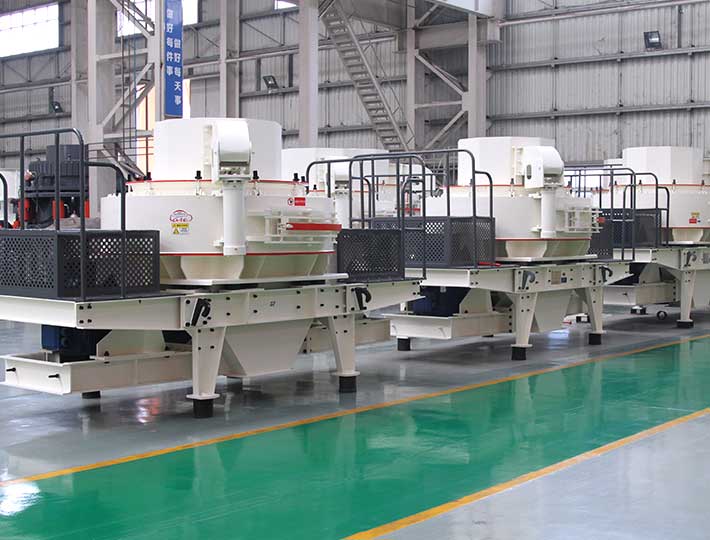

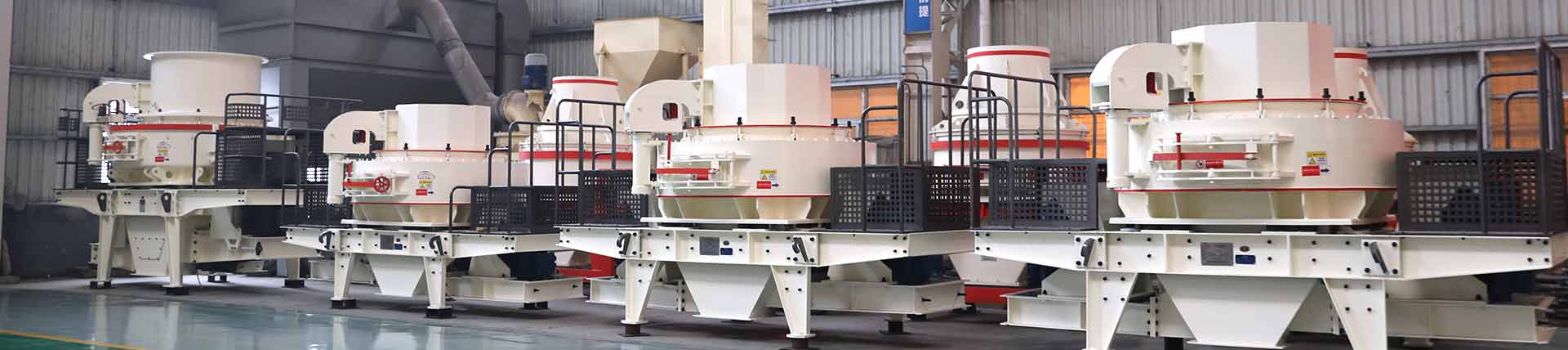

HVI Sand Making Machine
VSI Sand Making Machine
HX Sand Making Machine
Model | Sand Shaping | Sand Making | Sand Shaping | Sand Making | Motor Power(kw) |
Max.Feeding Size (mm) | Throughput(t/h) | ||||
HVI 0815 | <30 | <35 | 70-140 | 130-230 | 2×75 |
HVI 0818 | <30 | <35 | 80-190 | 165-283 | 2×90 |
HVI 0922 | <35 | <40 | 105-145 | 220-330 | 2×110 |
HVI 0926 | <35 | <40 | 120-190 | 240-380 | 2×132 |
HVI 1032 | <40 | <45 | 181-278 | 246-356 | 2×160 |
HVI 1040 | <40 | <45 | 262-284 | 350-440 | 2×200 |
HVI 1250 | <45 | <50 | 345-371 | 414-540 | 2×250 |
HVI 1263 | <50 | <55 | 453-498 | 521-585 | 2×315 |
Model | FTMVSI-7611 | FTMVSI-8518 | FTMVSI-9526 | FTMVSI-1140 | FTMVSI-1145 | FTMVSI-1150 | |
Capacity (t/h) |
Feed both at center and sides |
120-180 | 200-260 | 300-380 | 450-520 | 500-610 | 520-650 |
Feed at center |
60-90 | 100-130 | 150-190 | 225-260 | 245-355 | 255-365 | |
Max.feeding size(mm) |
Soft material |
35 | 40 | 45 | 50 | 50 | 50 |
Hard material |
30 | 35 | 40 | 40 | 45 | 45 | |
Rotation speed (r/min) |
1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1150-1300 | 1150-1300 | |
Double Motor power(kw) |
4P 110 | 4P 180 | 4P 264 | 4P 400 | 4P 400 | 4P 500 | |
Overall dimension (L×W×H)(mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5100×2700×3300 | 5500×2700×3300 | 5500×2700×3300 | |
Power supply | 380V 50HZ | ||||||
Lubrication station |
Double motor power of oil pump |
2×0.31Kw | |||||
Safety assuance |
Double oil pumps assure enough oil supply:automatic switch off with no oil stream or pressure,water cooling in summer,motor heating stare-up in winter. |
||||||
Overall dimension (L×W×H) (mm) |
820×520×1270 | ||||||
Power of oil tank heater |
2KW |
Model specification |
Max.feeding size (mm) |
Power (kw) |
Rotation speed of impeller (r/min) |
Capacity (t/h) |
Overall dimension (L×W×H) (mm) |
FTM-06 | 35 | 2P 37-55KW | 2000-3000 | 12-30 | 2500×1620×2600 |
FTM-07 | 45 | 4P 55-75KW | 1500-2500 | 25-55 | 2700×1760×2800 |
FTM-09 | 50 | 4P 110-150KW | 1200-2000 | 55-100 | 3900×2000×3070 |
FTM-10 | 60 | 4P 150-180KW | 1000-1700 | 100-160 | 4600×2350×3450 |

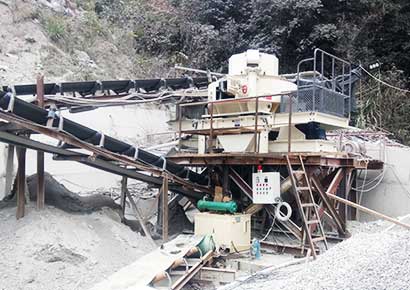

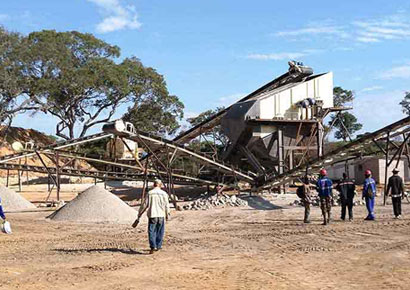

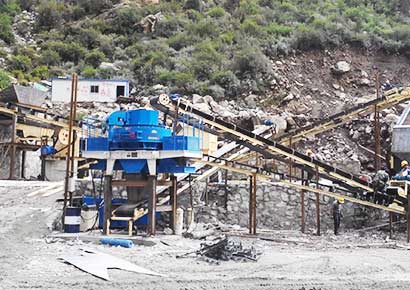

1. The device is small in size, easy to operate, and easy to install and maintain.
2. It has a shaping function, the product is cubic, and the bulk density is large.
3. The airflow inside the vortex chamber is self-circulating, with less dust and less noise. In the production process, the stone can protect the bottom layer, and the body is wear-free and durable.
4. The wearing parts are made of special hard and wear-resistant materials, and are small in size and light in weight, which is easy to replace.
