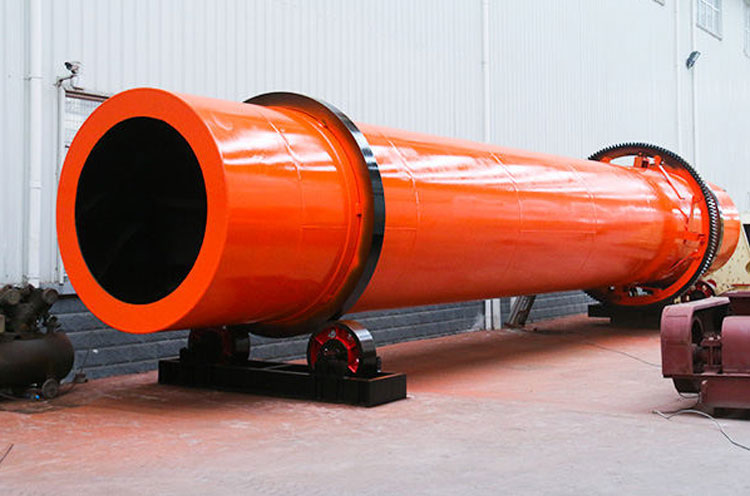

Rotary Dryer

Cylinder capacity: 9-285m³

Production: 10-30t/h

Applied material: slag, blast furnace slag, fly ash, cinder, slag, carbide slag, limestone, clay, sand, quartz sand.

If you want to know more product information. You can click on the button on the right to contact us or send us an email (sell@chinaftm.com), we will send you latest price within 24 hours.

Send Inquiry Free Consultation

Small, Medium & Large Machine

factory-direct sale, 100% factory price

Free Customized Advice

Tel: 0086-0371-69606666

E-mail: sell@chinaftm.com

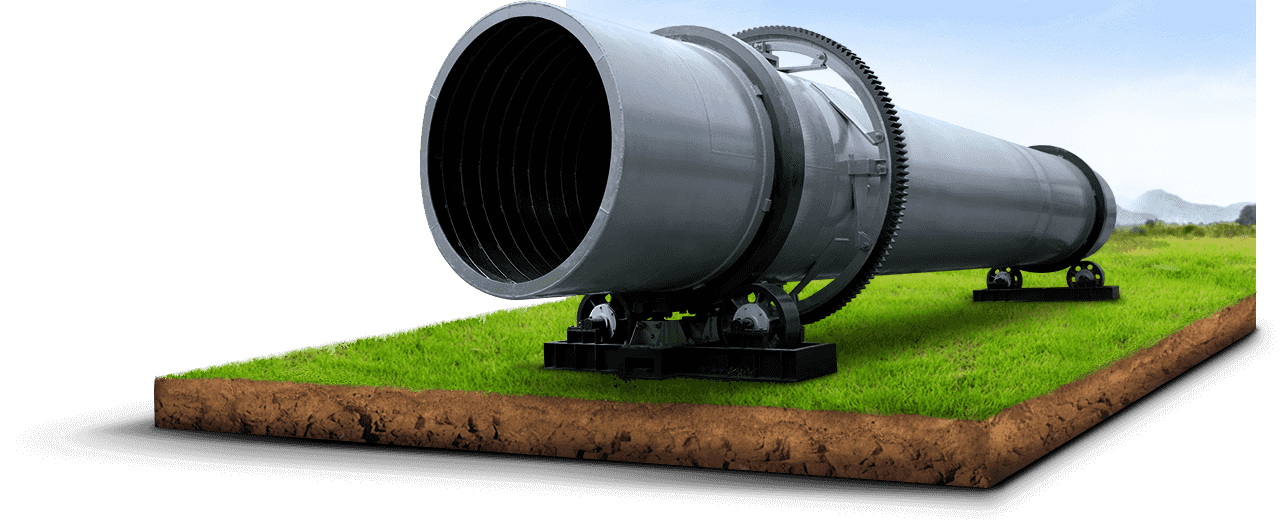

Introduction of Rotary Dryer

Rotary Dryer is mainly used for drying certain moisture materials in mineral processing, building materials, metallurgy, chemical and other departments. The equipment has strong adaptability to materials, can dry various materials, and the equipment operation is simple and reliable, so it is widely used.

The drying drum of the dryer machine is mainly composed of a rotating body, a lifting plate, a transmission device, a supporting device and a sealing ring.

The heat source used in the dryer machine is mainly the combustion products of various combustion products and air, water vapor, hot water, electric energy, etc. At the same time, the selection of the heat source of the dryer also affects the operating cost of the dryer, so the drying is selected. When the heat source of the dryer is used, it is necessary to follow the local conditions, the safety of the heat source, whether it is environmentally friendly, the quality of the material to be dried and the quality requirements after drying the material, and select a suitable heat source. Please feel free to contact us at any time.

Product Highlights: Durable, low cost, large processing capacity, energy saving, automatic temperature control, automatic control of the operating system

Technology Data
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5
700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
Length
(m)
Shell
cubage
(m³)
Shell
obliquity
Lifting
blade
form
Highest
inlet air
temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
