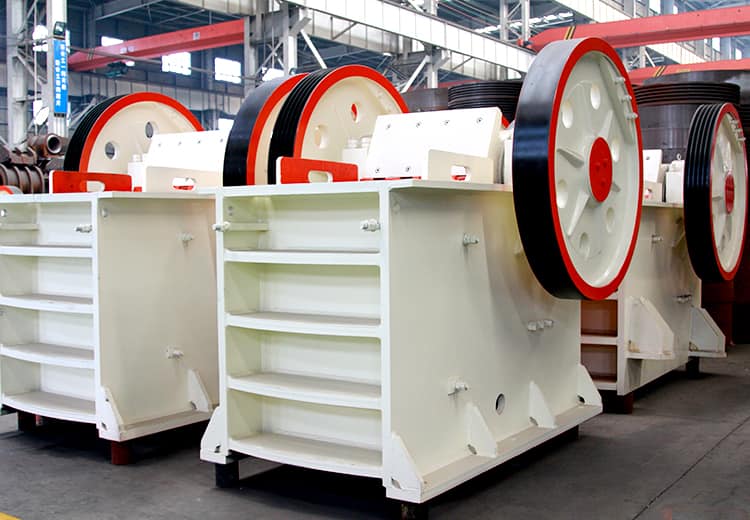

Rock Crusher

The rock crusher is a collective name for a series of mine crushing equipment. The crushers commonly used in mining are jaw crushers, impact crushers, hammer crushers, impact crushers and roller crushers. According to the difference in performance, different crushing processes are available in different models. For example, you can choose jaw crusher for primary crushing, impact crusher and cone crusher for medium crushing, vsi crusher for sand making. These rock crushing machines are are the equipment that must be used when customizing various sand making production lines and crushing production lines for users.

Are you interested in our machines? Get Quotation
Rock Crusher

Why FTM Rock Crusher ?

Rock crushers can achieve different production requirements, not only in small sandstone plants, but also in large construction projects. It is suitable for a wide variety of materials with crushing compressive strength not exceeding 320 MPa, such as limestone, feldspar, calcite, talc, barite, clay, kaolin, dolomite, gypsum, graphite, granite, basalt, slag, marble, construction waste, etc., and they are widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries.

In addition to these fixed crushers, FTM has introduced a new type of mobile crusher. Users can configure corresponding feeders, crushers, conveyors and other devices according to their needs to achieve better crushing effect. The automation of the whole machine is very high, reducing labor investment costs and saving a lot of material and human investment for the processing plant.

Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600

Advantages

1. The equipment is made of composite wear-resistant materials, especially wearing parts, which guarantees low wear rate and longer durability.

2. The output of the crusher can be as high as 2,200 tons per hour, there is no crushed dead zone and the finished product has uniform particle size.

3. The crusher is equipped with advanced dust removal device, silencer and energy-saving motor to ensure no dust, no noise pollution and save electric power.

4. The lubrication system is safe and reliable and the discharge port adjustment range is large, which can meet the requirements of different users.
