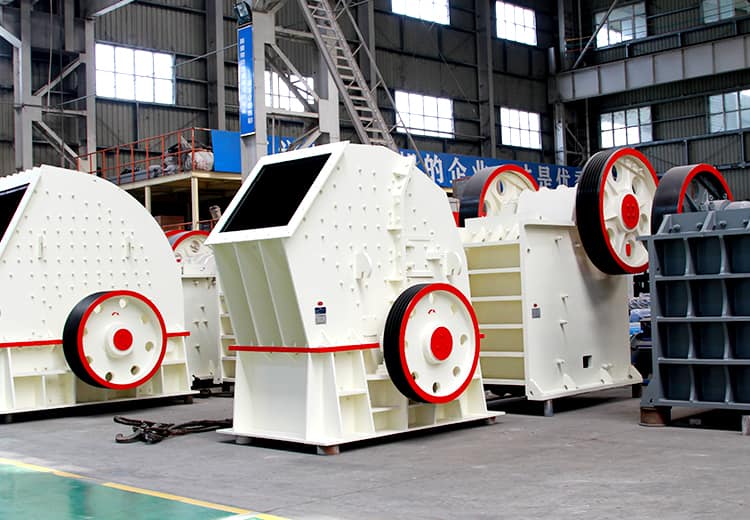

PCZ Hammer Crusher

The PCZ Hammer Crusher can crush the stone in once time without secondary crushing, which can reduce the cost by about 40%, and have low energy consumption and low investment. It is widely used in many industries such as mining, smelting, building materials, road, railway, water conservancy and chemical industry. It is a kind of advanced equipment in the hammer crushers in the industry, which has features of high efficiency, energy saving and environmental protection.

Are you interested in our machines? Get Quotation
PCZ Hammer Crusher

Brief In PCZ Hammer Crusher

Hammer crusher is one of the main equipment for crushing brittle materials with medium hardness and below. It is mainly for all kinds of ore with compressive strength not exceeding 200MPa and water content less than 15%, such as gypsum, brick, limestone, coal, glass and so on. It has a maximum production capacity of 3000t/h. The feed port of the machine is available in size from 400mm to 1200 mm.

The PCZ Hammer Crusher is processed by advanced production technology. It is a kind of advanced technology in hammer crushers in the industry. It has the characteristics of high efficiency, energy saving and environmental protection. What’s more, it is mainly used in cement, mining, coal preparation, power generation, chemical and building materials industries, and it is used to crush various medium hardness and brittle materials such as limestone and coal. This machine removes the primary crushing process of the jaw crusher, and can realize crushing and forming once, and the product granularity is uniform and complete, which effectively reduces the crushing cost of the material. It is an alternative to the old jaw crusher and hammer crusher.

Technical Data

Model Rotor diameter×length (mm) Feed Opening Length×width(mm) Feeding Size (mm) Processing Capacity(t/h) Power (kw) Dimensions L×W×H (mm)
PCZ1308 Φ1330×790 870×780 ≤380 60-160 132 2880×2130×2390
PCZ1410 Φ1400×1000 1060×740 ≤450 80-210 2×90(160) 2830×2100×2485
PCZ1610 Φ1600×1000 1090×930 ≤480 100-230 2×132 3370×2415×2750
PCZ1612 Φ1600×1200 1340×1140 ≤500 120-350 2×160 3370×2613×2750
PCZ1615 Φ1600×1500 1570×1140 ≤550 200-550 2×200 3370×2925×2750
PCZ1716 Φ1700×1600 1420×1200 ≤600 400-850 2×250 3520×3000×3210
PCZ1720 Φ1700×2000 2030×1200 ≤650 500-1000 2×400 3670×3390×3330
PCZ1920 Φ1900×2000 1980×1210 ≤750 800-1500 2×500 4490×3910×3600
PCZ2225 Φ2200×2500 2530×1610 ≤1000 1500-3000 1250 4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.


Cost-saving & Energy-saving: The crusher shapes material up by single crushing without second time to reduce the cost by around 40%, which ensures energy and investment saving.

Wide Range of the Stone Application: It is especially applicable for crushing limestone and medium hardness stones less than 200Mpa.

High Degree of Automation: It uses an external oil pump, fuel tank, and line lubrication system. When the oil temperature is too high or the flow rate is too slow, it will automatically stop.

Multi-purpose Machine: Thanks to the modular design, coarse, medium and fine crushing can be achieved by changing the cavity shape to improve production efficiency.
