Ore Crusher

The ore crusher is a generic term for crushers and is used for coarse, medium and fine crushing of various ores. According to the principle, shape, special field and other factors, the ore crusher can be divided into jaw crusher, impact crusher, sand maker, cone crusher and so on. Whatever which kind of crusher, although they are different in finished product size, they can all provide excellent productivity and low cost per ton.

Are you interested in our machines? Get Quotation
Ore Crusher

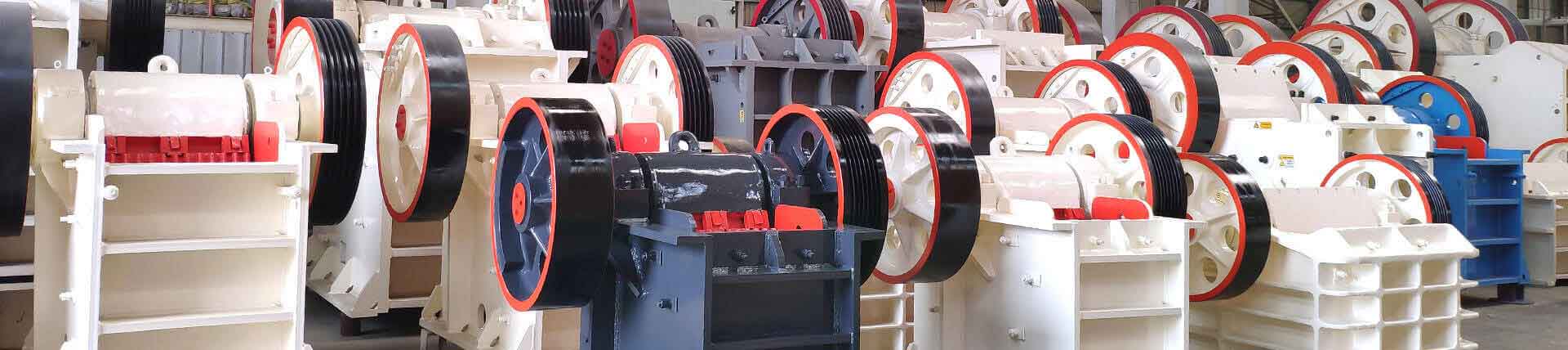

Welcome to Visit Factory

Why FTM Ore Crusher ?

The jaw crusher is suitable for hard materials such as granite, basalt, limestone, quartz, concrete, aggregate, iron ore, gold ore, etc. It has a maximum production capacity of 2200 t/h. The feed port of the machine is available in sizes from 120mm to 1500 mm and the discharge port is available in sizes from 10mm to 400 mm.

Cone crusher is used to crush ore and rock with medium and above hardness (below 350 MPa), such as granite, basalt, concrete, limestone, quartz, river pebble, dolomite, aggregate, rock, iron ore, gold ore and so on. It has a maximum production capacity of 1000 t/h. The feed port of the machine is available in sizes from 65mm to 300 mm and the size of finished products is available from 3mm to 50 mm.

The impact crusher can process materials with a side length of 100mm to 500 mm. It has a compressive strength of up to 350 MPa and is suitable for crushing materials with medium hardness such as limestone crushing in cement plants. It has a maximum production capacity of 550t/h. The feed port of the machine is available in sizes from 300mm to 700 mm.

Technical Data

Jaw Crusher

Cone Crusher

Hammer Crusher

Impact Crusher

Sand making machine

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
Model Rotor diameter×length
    (mm)
Feed opening Length×width
(mm)
Feeding size
   (mm)
Capacity
  (t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×790 910×890 ≤400 100-160 132 2880×2130×2390
PCZ1410 1400×1000 1020×750 ≤500 180-230 4P   160/2×90 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤600 260-350 132×2 3370×2415×2750
PCZ1615 1600×1500 1400×1000 ≤600 380-550 200×2 3370×2925×2750
PCZ1716 1700×1600 1640×1300 ≤650 600-850 250×2 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤650 700-1000 400×2 3670×3390×3330
PCZ1920 1900×2000 1850×1600 ≤800 900-1500 500×2 3729×3300×4450
PCZ2225 2200×2500 2100×2300 ≤1200 1500-3000 1250 4620×5380×4780
Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(t)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P   630-710 4400×3866×4009 83.21
Model Sand Shaping Sand Making Sand Shaping Sand Making Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  70-140  130-230  2×75
HVI 0818 <30 <35 80-190 165-283 2×90
HVI 0922 <35 <40 105-145 220-330 2×110
HVI 0926 <35 <40 120-190 240-380 2×132
HVI 1032 <40 <45 181-278 246-356 2×160
HVI 1040 <40 <45 262-284 350-440 2×200
HVI 1250 <45 <50 345-371 414-540 2×250
HVI 1263 <50 <55 453-498 521-585 2×315

Advantages

1. The jaw plates of jaw crusher are made of high-manganese steel, which has stronger wear resistance and prolongs the lifespan of the machine.

2. The cone crusher is especially suitable for crushing various high hardness stones and ores.

3. The impact crusher is a shaping machine with good grain size and is suitable for industries with high grain size requirements.
