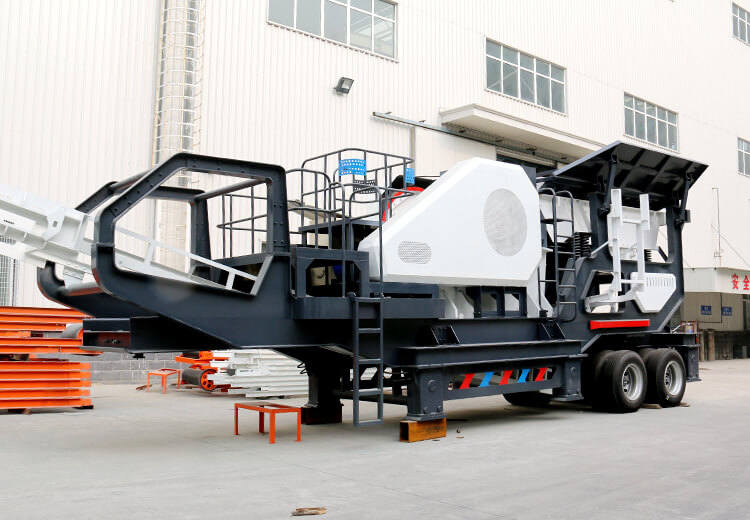

The mobile crushing plant eliminates the cumbersome steel frame structure and foundation construction during the crushing, saving the construction time and cost of the foundation. The mobile crushing plant can directly enter the crushing site for on-site crushing, which reduces the transportation cost of materials, and also avoids the dust pollution generated during transportation.
Mobile crushers include crawler-type mobile crusher and wheeled mobile crusher. The mobile crushing equipment is a set of movable crushing and screening equipment. According to the crushing and screening requirements, there are different combinations to meet the different needs of customers, such as mobile jaw crusher, mobile cone crusher, mobile impact crusher etc.
The mobile crushing plant is the matching equipment. It can provide a variety of individualized unit configurations according to the different requirements of customers and the actual situation. It can be operated in a single machine or in multiple units, thus achieving a combination of functions such as single unit crushing, multi-unit combined classification crushing, and screening. The mobile crushing plant can be used in mines, coal mines, garbage and construction waste recycling, earth and stone works, urban infrastructure, roads or construction sites.
MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS
|The Maximum Feeding Size（mm）||350||350||500||400||700|
|Main Belt Conveyor||B800×8.5M||B800×8.5M||B1000×9.5M||B800×11M||B1200×11M|
|Side-opening Belt conveyor(Optional)||B500×3.2M||B500×3.2M||B650×4M||B650×4M||B650×4M|
|Iron Separator (Optional)（kw）||RCYD(C)-8||RCYD(C)-8||RCYD(C)-10||RCYD(C)-8||RCYD(C)-12|
MOBLIE JAW CRUSHER TECHNICAL PARAMETERS
|Maximum Feeding Size(mm)||500||550||660||800|
|Discharge Opening Size(mm)||50-150||75-175||100-200||125-225|
|Main Belt Conveyor||B800×8.5M||B1000×9.5M||B1000×11M||B1200×11M|
|Side-opening Belt conveyor(Optional)||B500×3M||B650×3.5M||B650×4M||B650×4M|
|Iron Separator (Optional)||RCYD(C)-8||RCYD(C)-10||RCYD(C)-10||RCYD(C)-12|
1.The set performance is strong, the combination is reasonable and compact, and the requirements for the work site are extremely low;
2.The vehicle has a compact structure, a small turning radius, and is convenient and quick to convert, enter and exit the site;
3.It can directly enter the raw material site to work, thus saving the transportation cost of raw materials;
4.It can be equipped with generator sets to meet the normal operation requirements of complex situations such as no electricity or power failure, reducing losses.
