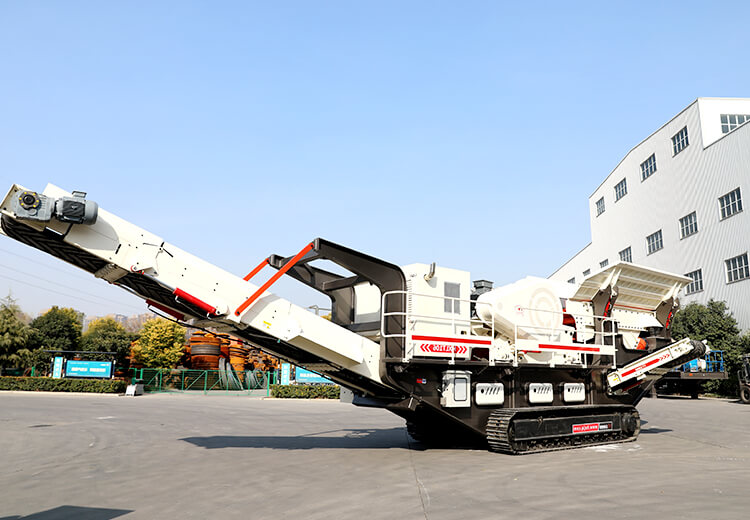

Mobile Crusher

The mobile crusher eliminates the cumbersome steel frame structure and foundation construction during the crushing, saving the construction time and cost of the foundation. The mobile crusher can directly enter the crushing site for on-site crushing, which reduces the transportation cost of materials, and also avoids the dust pollution generated during transportation.

Are you interested in our machines? Get Quotation

Brief In Mobile Crusher

Mobile crushers include crawler-type mobile crusher and wheeled mobile crusher. The mobile crushing equipment is a set of movable crushing and screening equipment. According to the crushing and screening requirements, there are different combinations to meet the different needs of customers, such as mobile jaw crusher, mobile cone crusher, mobile impact crusher etc.

The mobile crusher is the matching equipment. It can provide a variety of individualized unit configurations according to the different requirements of customers and the actual situation. It can be operated in a single machine or in multiple units, thus achieving a combination of functions such as single unit crushing, multi-unit combined classification crushing, and screening. The mobile crusher can be used in mines, coal mines, garbage and construction waste recycling, earth and stone works, urban infrastructure, roads or construction sites.

Technical Data

Mobile Jaw Crusher

Mobile Impact Crusher

Mobile Cone Crusher

Mobile Screening Plant

Mobile Sand Making Plant

Mobile Impact Crusher Screen Plant

Model	FTM938HD86	FTM1149HD98	FTM1349HD110	FTM1349HD125
Transportation lenght(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Lenght(mm)	12500	14000	16100	16700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	55	65
Tire Configuration	Dualaxial	Triaxial	Triaxial	Triaxial
Jaw Crusher	HD86	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge opening range	50-150	75-175	100-200	125-225
Capacity(t/h)	85-275	110-350	215-510	280-650
Vibrating Feeder	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5m	B1000×9.5m	B1000×11m	B1200×11m
Side-opening Belt conveyor(optional)	B500×3m	B650×3.5m	B650×4m	B650×4m
Gensrt(optional)	200KW	250KW	270KW	400KW
Iron separator(optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

Model	FTM938F1210	FTM938F1214	FTM1149F1315	FTM938F1110	FTM1349F1315
Transportation length(mm)	12000	12000	13900	15450	15450
Transportation Width(mm)	2550	2550	2900	2950	2950
Transportation Height(mm)	3900	3900	4450	4500	4500
Maximum length(mm)	12500	12500	13900	15450	15450
Maximum Width(mm)	3250	3260	3250	3250	3250
Maximum Height(mm)	5100	5200	5200	5200	5200
Weight(t)	39	44	54	62	62
Impact crusher	PE-1210	PE-1214	PF-1315	HD1110	HD1315
Maximum Feeding Size(mm)	350	350	500	400	700
Capacity(t/h)	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(optional)	B500×3.2m	B500×3.2m	B650×4m	B650×4m	B650×4m
Gensrt(optional)	320KW	320KW	400KW	320KW	440KW
Iron separator(optional)	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

Model	FTM3S185GYS300	FTM3S216GYS400	FTM3S216HP300
Transportation length(mm)	14500	15000	16000
Transportation Width(mm)	3000	3000	4550
Transportation Height(mm)	4400	4500	4600
Maximum Length(mm)	17000	16000	17000
Maximum Width(mm)	3400	3900	6900
Maximum Height(mm)	5800	6500	4700
Weight(t)	34.5	49.5	41
Tire Configuration	Dualaxial	Triaxial	Triaxial
Cone crusher	GYS300	GYS400	HP300
Discharging belt Conveyor	B650×15M×2	B800×15M×2	B800×15M×2
Return belt conveyor	B650×14M	B800×14M	B800×16M
CONveyor Belt For Final Products	B500×15M	B800×6M	B650×15M×2
Under Virbrating Screen	B800×7M	B800×8M	B800×9M
Vibrating Screen	3YK1854	3YK2160	3YK2160

Model	FTM3S1848	FTM3S1860	FTM3S2160
Transportation length(mm)	10280	11480	11480
Transportation Width(mm)	2830	2830	3150
Transportation Height(mm)	4350	4350	4350
Maximum Length(mm)	11100	11800	11800
Maximum Width(mm)	3600	3600	3970
Maximum Height(mm)	6000	6000	6500
Weight(t)	16	18	19
Tire Configuration	Dualaxial	Dualaxial	Dualaxial
Vibrating Screen	3YZS1848	3YZS1860	3YZS2160

Model	FTM3S1848V08	FTM3S1860V09	FTM3S2160V103
Transportation length(mm)	13500	15600	15600
Transportation Width(mm)	2830	2830	3100
Transportation Height(mm)	4350	4350	4480
Maximum Length(mm)	14650	16300	16300
Maximum Width(mm)	3900	3900	3900
Maximum Height(mm)	5980	6400	6550
Weight(t)	31	36	49
Tire Configuration	Biax Fitted	Biax Fitted	Biax Fitted
Sand maker	HVI0815	HVI0922	HVI1032
Discharging Belt Conveyor	B800×2.2M	B800×2.5M	B1000×2.5M
Belt under vibrating screen	B800×7M	B800×8M	B1000×8M
Vibrating Screen	3YZS1848	3YZS1860	3YZS2160

Model	FTM3S184F210	FTM3S185F214	FTM3S216F315	FTM3S184HD1110	FTM3S216HD1315
Transportation lenght(mm)	14600	15000	16000	16000	16000
Transportation Width(mm)	2800	2900	3100	3100	3100
Transportation Height(mm)	4400	4400	4550	4400	4550
Maximum Lenght(mm)	16000	16000	17000	16500	17000
Maximum Width(mm)	3800	3900	4600	3900	4600
Maximum Height(mm)	6500	6500	6900	6800	6900
Weight(t)	35	41.5	54	42	48.5
Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial	Triaxial
Impact Crusher	PF1210	PF1214	PF1315	HD1110	HD1315
Feeding belt conveyor	B650×15M×2	B800×15M×2	B1000×15M×2	B800×15M×2	B1000×15M×2
Return belt conveyor	B650×14M	B800×14M	B1000×16M	B800×16M	B1000×16M
Conveyor Belt For Final Product	B500×15M×2	B500×15M×2	B650×15M×2	B500×15M×2	B650×15M×2
Under Vibrating Screen	B800×7.5M	B800×7.5M	B1000×9M	B800×8M	B1000×9M
Vibrating Screen Model	3YZS1848	3YZS1854	3YZS2160	3YZS1848	3YZS2160

Advantages

The set performance is strong, the combination is reasonable and compact, and the requirements for the work site are extremely low;

The vehicle has a compact structure, a small turning radius, and is convenient and quick to convert, enter and exit the site;

It can directly enter the raw material site to work, thus saving the transportation cost of raw materials;

It can be equipped with generator sets to meet the normal operation requirements of complex situations such as no electricity or power failure, reducing losses.

Service & History

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 30 years since its establishment. It has three production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
