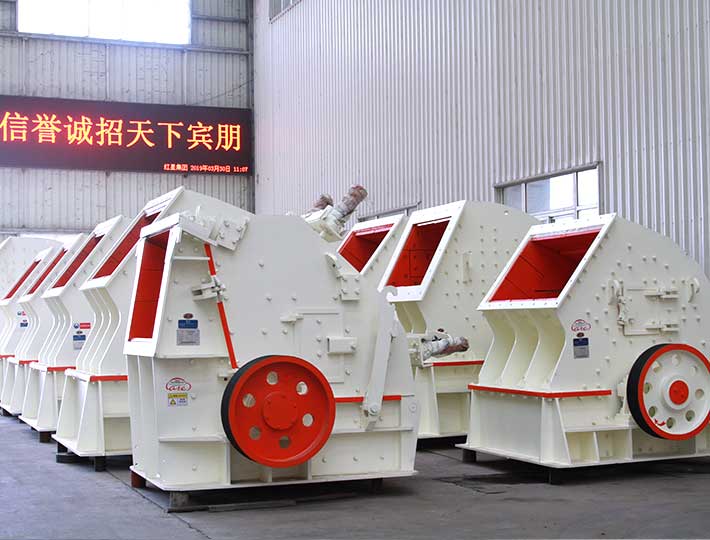

Impact Crusher

The impact crusher is generally used as a secondary crushing device and can process materials with side length less than 500 mm and compressive resistance no more than 350 Mpa. It adopts new manufacturing technology and unique structural design. The finished product is cubic, no tension and crack, the grain shape is quite good, the discharge grain size can be adjusted, and the crushing specifications are diversified.

Are you interested in our machines? Get Quotation
Impact Crusher

Brief In Impact Crusher

The impact crusher is a new generation of impact crusher developed by our company (Henan Fote Heavy Machinery Co., Ltd.) in the absorption of advanced technology at home and abroad, combined with the specific industrial and mining conditions of the domestic sand and gravel industry. It is suitable for crushing medium hardness materials, such as limestone crushing, granite and concrete in cement plants. It is widely used in various ore crushing, railway, highway, energy, cement, chemical, construction and other industries.

The impact crusher is a crushing machine that uses impact energy to break up materials. When the machine is working, the rotor rotates at high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then the bomb returns to the hammer action zone from the counter-attack and is broken again. This process is repeated, and the material is repeatedly broken into first, second, and third counter-attack chambers until the material is crushed to the desired particle size and discharged from the discharge port. It can achieve the purpose of changing the material discharge size and material shape by adjusting the gap between the counter-rack and the rotor.

Technical Data

PF Series Impact Crusher

HD German Impact Crusher

CI Series Impact Crusher

Model Specification
(mm)
Feed
Opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
Dimension
(L×W×H)
(mm)
Total
Weight
(t)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P   630-710 4400×3866×4009 83.21
Model Rotor
(mm)
The Maximum Feeding Size
(mm)
Capacity
(t/h)
Motor power
(kw)

Overall dimension
(L×W×H)
(mm)

Weight
(kg)
-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P   90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P    200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P   400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P   500-670 5540×4330×4600 66000
Model Maximum Feeding Size
(mm)
Main Motor Power
(kw)
Productive Capacity
(t/h)
Dimensions
(L ×W ×H)(mm)
CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1315 300 250 150-350 3320×2770×2535
CI1520 350 2×(200-250) 250-600 3450×3620×2770
CI1313 600 200 200-480 2972×2560×2937
CI1415 600 250 250-600 2985×2790×3068
CI1620 800 2×(200-250) 380-900 4261×3480×3780
CI2023 800 2×500 800-2000 5151×4424×4712

Advantages

1.Big feeding inlet and high crushing chamber, which are applicable for large-lump hard materials with low powder rate;

2.The interval between impact plate and hammer can be easily adjusted, which effectively control the discharging size and ensure good particle shape;

3.Compact structure; strong rigidity; the rotor has a large moment of inertia;

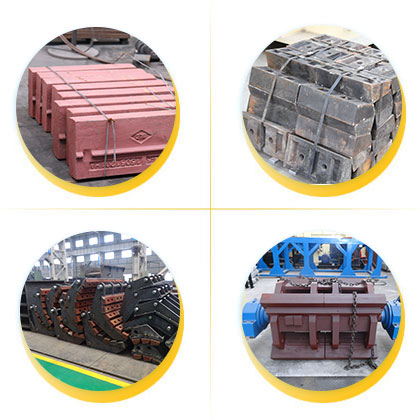

4.High chromium hammer, resistance to wear, large impact force.
