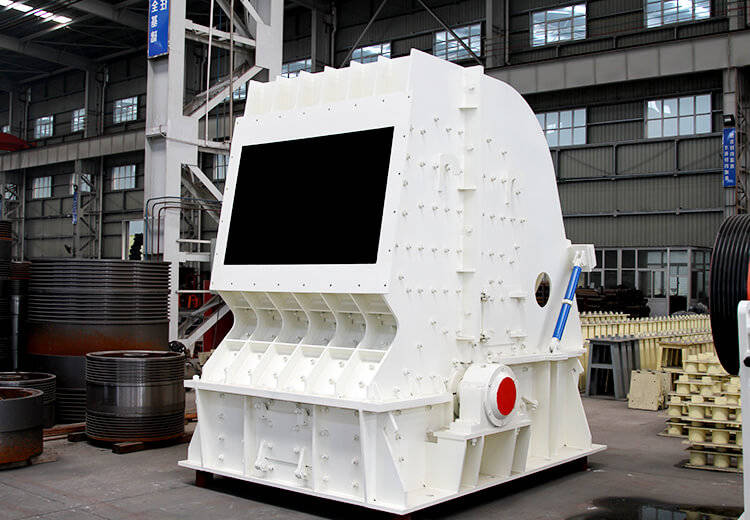

HD German Impact Crusher

HD German impact crusher is a new type of energy-saving impact crusher. It is equipped with advanced environmental protection equipment and introduces advanced German wear-resistant materials and technology. The German impact crusher adopts an optimized crushing chamber. The processing capacity is larger, there is no crushing dead zone, and the design of the grinding cavity makes crusher adaptability stronger.

Are you interested in our machines? Get Quotation
HD German Impact Crusher

Brief In HD German Impact Crusher

HD German impact crusher is widely used in building materials, ore crushing, railway, highway, transportation, cement, mining, chemical and other industries. It is used for medium and fine crushing of stones like limestone, granite, river pebbles, quartz, dolomite, iron ore, concrete, coal, gypsum, etc. It is suitable for treating the materials with side length not exceeding 500mm and compressive strength not exceeding 350MPa.

The HD German impact crusher has a heavy-duty design, improves plate hammer fixing method, and has overload and over-iron protection device, which is more reliable and safe. The liner can be replaced and repaired conveniently. The impact crusher provides customers with a low-cost solution with outstanding performance and good grain shape. The unit runs less money and has a wide range of application.

Technical Data

Model Rotor
（mm）		 The Maximum Feeding Size
（mm）		 Capacity
（t/h）		 Motor power
（kw）

Overall dimension
（L×W×H）
(mm)

 Weight
（kg）
-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P   90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P    200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P   400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P   500-670 5540×4330×4600 66000

Advantages

1.The impact crusher has a maximum feed size of 1300mm and a large feed port design that can break larger materials. The finished product is smaller in size and cube shape.

2.The crusher uses a multi-stage counter-attack chamber and a semi-automatic adjustment device to effectively improve crushing efficiency.

3.The improved board hammer utilization rate is up to 48%, and the overload protection device is installed, which not only reduces the maintenance cost, but also makes the operation process more stable and reliable.
