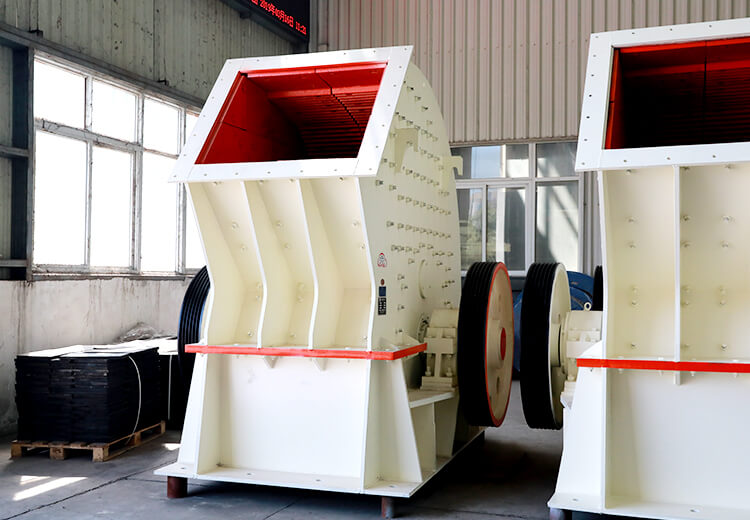

Hammer mill is also called hammer crusher. It is suitable for crushing medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway, burning and other industries. It is mainly for all kinds of ore with compressive strength not exceeding 100MPa and water content less than 15%.
Hammer crusher can be used to break coal, salt, chalk, gypsum, brick, limestone and so on. The feed size of the machine is less than 350 mm. The hammer crusher has a maximum production capacity of 100t/h.
The hammer crusher can be used not only for crushing production lines and sand production lines, but also for replacing cone crusher in beneficiation equipment. The crusher can change the gap between users’ needs and change the discharge granularity to meet the different needs of different crusher users. It has the characteristics of large crushing ratio, high production capacity and uniform product size. Henan Fote Heavy Machinery Co., Ltd. has more than 30 years of history in designing and manufacturing hammer crushers with advanced product structure, reliable performance, stable operation and low energy consumption. The hammer crusher produced by our company is reasonable in price and has formed a series of products, which is very popular among users at home and abroad.
PC Hammer Crusher
PCZ Heavy Hammer Crusher
PCX Hammer Shaping Crusher
Specification | Capacity(t/h) | Power (kw) |
PC 400×300 | 3-10 | 4P 11 |
PC 600×400 | 6-22 | 4P 22 |
PC 800×600 | 10-40 | 4P 55 |
PC 1000×800 | 15-50 | 4P 75 |
PC 1000×1000 | 18-75 | 4P 90 |
PC 1200×1200 | 22-95 | 4P 132 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model | Rotor diameter×length (mm) | Feed Opening Length×width(mm) | Feeding Size (mm) | Processing Capacity(t/h) | Power (kw) | Dimensions L×W×H (mm) |
PCZ1308 | Φ1330×790 | 870×780 | ≤380 | 60-160 | 132 | 2880×2130×2390 |
PCZ1410 | Φ1400×1000 | 1060×740 | ≤450 | 80-210 | 2×90(160) | 2830×2100×2485 |
PCZ1610 | Φ1600×1000 | 1090×930 | ≤480 | 100-230 | 2×132 | 3370×2415×2750 |
PCZ1612 | Φ1600×1200 | 1340×1140 | ≤500 | 120-350 | 2×160 | 3370×2613×2750 |
PCZ1615 | Φ1600×1500 | 1570×1140 | ≤550 | 200-550 | 2×200 | 3370×2925×2750 |
PCZ1716 | Φ1700×1600 | 1420×1200 | ≤600 | 400-850 | 2×250 | 3520×3000×3210 |
PCZ1720 | Φ1700×2000 | 2030×1200 | ≤650 | 500-1000 | 2×400 | 3670×3390×3330 |
PCZ1920 | Φ1900×2000 | 1980×1210 | ≤750 | 800-1500 | 2×500 | 4490×3910×3600 |
PCZ2225 | Φ2200×2500 | 2530×1610 | ≤1000 | 1500-3000 | 1250 | 4890×5010×4560 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Model | Rotor diameter×Length(mm) | Feed Opening Length×Width(mm) | Feeding Size(mm) | Processing Capacity(t/h) | Power(kw) | Dimensions(L×W×H)(mm) |
PCX 0706 | 700×570 | 618×510 | ≤150 | 30-70 | 75 | 1950×1340×1480 |
PCX 0808 | 800×750 | 780×610 | ≤150 | 45-100 | 132 | 2280×1790×1570 |
PCX 0910 | 900×1000 | 1070×750 | ≤200 | 70-200 | 2×110 | 2600×2200×1940 |
PCX 1012 | 1000×1180 | 1315×900 | ≤200 | 130-300 | 2×132 | 2760×2430×2290 |
PCX 1213 | 1260×1280 | 1430×1010 | ≤250 | 200-350 | 2×160 | 3067×2622×2580 |
PCX 1216 | 1260×1490 | 1630×1010 | ≤250 | 230-500 | 2×200 | 3067×2832×2580 |
PCX 1220 | 1260×1950 | 2090×1010 | ≤250 | 300-700 | 2×220 | 3067×3380×2580 |
PCX 1622 | 1600×2150 | 2300×950 | ≤300 | 400-1200 | 2×315 | 4120×3680×3200 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Unique design & compact structure: The structure of the hammer crusher is sealed to solve the problem of dust pollution and ash leakage in the crushing workshop.
Adjustable granularity: The required discharge size can be adjusted according to customer requirements.
Wear & impact resistance: The hammer head of the crusher is cast by a new process, with less wearing parts and convenient maintenance. It is an upgraded product.
If your machine fails, production at the entire plant will be at risk. To avoid such
losses, you can get critical replacement parts of the machine whenever you need it.
Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.
Our fixed-model machines and consumables are available from stock to ensure customers
get the machines they need in time.
