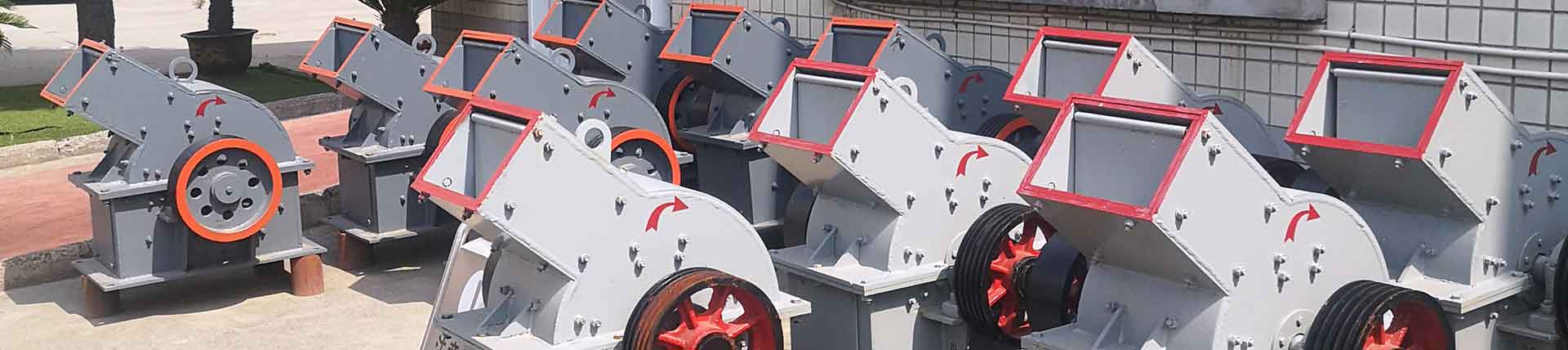

Hammer Crusher

Hammer crusher is also called hammer mill or hammer mill crusher. Hammer crusher can be divided into ordinary hammer crusher, pcx hammer crusher, and pcz heavy hammer crusher. The crusher realizes one-time feeding forming without secondary crushing. It adopts the principle of impact crushing, mainly crushing some medium hardness materials, which can be divided into dry and wet forms, and can change the discharge granularity according to different needs of users.

Are you interested in our machines? Get Quotation
Hammer Crusher

Brief In Hammer Crusher

Hammer crusher is suitable for crushing medium-hard materials in cement, chemical, electric power, metallurgical and other industrial sectors, such as limestone, cement, coal, gypsum and other materials. The compressive strength of the material does not exceed 100 MPa, the humidity is not more than 15%. The hammer crusher can directly crush the material with the particle size of 600-1800 mm to 25 or below 25 mm. The output size can be adjusted according to the user's requirements, and the granularity of the discharge (coarse, medium and fine specifications) can be changed.

The hammer crusher uses the high-speed rotating hammer to collide with the material to crush the material. The hammer head adopts the modern advanced composite casting process and is cast with high-corrosion high-chrome cast iron. It is an ideal combination of steel and iron, with very good wear resistance, impact resistance and safety and reliability. The hammer crusher can be used not only for crushing production lines and sand production lines , but also for beneficiation production lines.

Technical Data

PC Hammer Crusher

PCZ Heavy Hammer Crusher

PCX Hammer Shaping Crusher

Specification Capacity(m³/h)
Motor Power
(kw)
PCΦ400×300 5-10 4P 11KW
PCΦ600×400 10-22 4P 22KW
PCΦ800×600 18-40 6P 55KW
PCΦ1000×800 25-50 8P 75KW
PCΦ1000×1000 30-55 8P 90KW
Model Rotor diameter×length
    (mm)
Feed opening Length×width
(mm)
Feeding size
   (mm)
Capacity
  (t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×790 910×890 ≤400 100-160 132 2880×2130×2390
PCZ1410 1400×1000 1020×750 ≤500 180-230 4P   160/2×90 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤600 260-350 132×2 3370×2415×2750
PCZ1615 1600×1500 1400×1000 ≤600 380-550 200×2 3370×2925×2750
PCZ1716 1700×1600 1640×1300 ≤650 600-850 250×2 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤650 700-1000 400×2 3670×3390×3330
PCZ1920 1900×2000 1850×1600 ≤800 900-1500 500×2 3729×3300×4450
PCZ2225 2200×2500 2100×2300 ≤1200 1500-3000 1250 4620×5380×4780
Model Rotor×Length(mm) Feed Opening  Length×Width(mm) Max.Feeding Size(mm) Capacity(t/h) Power(kw) Dimensions(L×W×H(mm)
PCX-0706 700×570 618×510 ≤200 50-70 75 1950×1340×1480
PCX-0808 800×750 780×610 ≤200 80-100 132 2280×1790×1570
PCX-0910 900×1000 1070×750 ≤200 150-200 110×2 2600×2200×1940
PCX-1012 1000×1180 1315×900 ≤200 250-300 132×2 2760×2430×2290
PCX-1213 1260×1280 1430×1010 ≤250 300-350 160×2 3067×2622×2580
PCX-1216 1260×1490 1630×1010 ≤250 400-500 200×2 3067×2832×2580
PCX-1220 1260×1950 2090×1010 ≤250 500-700 220×2 3067×3380×2580
PCX-1622 1600×2150 2300×980 ≤300 600-900 315×2 4100×3500×3000

Advantages

1. There is no sieve plate in the crushing chamber of the hammer crusher, which overcomes the blockage caused by high material temperature and can carry out continuous operation. And the frequency of failure is very small, thus saving the downtime.

2. The crushing ratio is large (usually 10 to 25, the highest is 50), and the energy consumption per unit product is low. Compared with other crushing equipment, the overall energy saving is about 50%.

3. Strong structure, impact resistance, 30% increase in output, and more than 20% reduction in needle and powder products.

4. The hammer head and sieve plate are made of chrome-manganese alloy material, which has stronger impact resistance and wear resistance. The equipment is lighter and easy to operate and maintain.
