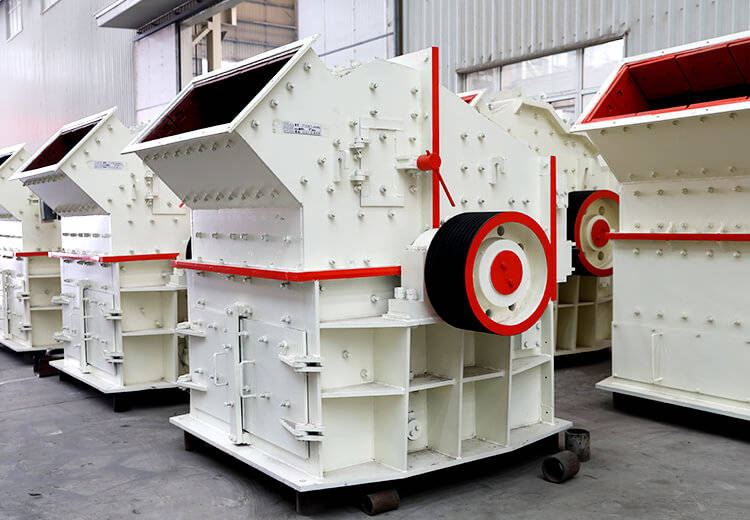

Fine Crusher

Fine crusher is also named Tertiary Impact Crusher. The equipment is widely used in metallurgy, chemical industry, building materials, electric power, transportation and other industries. It is an efficient and energy-saving gravel sand making equipment, which is 50% more energy efficient than traditional fine crusher. It is the most advanced fine crusher equipment in the world currently.

Are you interested in our machines? Get Quotation
Fine Crusher

Why FTM Fine Crusher ?

The Fine crusher is suitable for hard and brittle materials such as granite, basalt, limestone, river pebble, cement clinker, quartz stone, iron ore, bauxite and other minerals. The feed port of the machine is available in sizes from 120mm to 190 mm and the discharge port is available in sizes from 0mm to 10 mm. What’s more, the fine crusher has a maximum production capacity of 310t/h.

Its performance has reached the international leading level, and is currently the most effective, practical and reliable crushing machine, especially suitable for making abrasive, refractory materials, cement, quartz sand, steel sand and other hard and brittle materials. When the fine crusher is working, the third-generation sand making machine is driven by the motor, the rotor rotates at a high speed, the material enters the first crushing chamber and breaks with the hammer on the rotor, and then enters the second fine crushing chamber for crushing, and finally the finished product is discharged from the discharge port.

Technical Data

PXJ tertiary impact crusher
Rotorø×Width
(mm)
Specification
800×400
800×600
800×800
1010×1010
1200
×1200
1400
×1400
1600
×1600
1800
×1800
Feed opening size(mm)
400×185
500×250
550×300
1000×350
1200
×450
1500
×500
1600
×550
1800
×800
Feeding size (mm)
<120
<180
<180
<180
<180
<190
<190
<190
Discharging size (mm)
0-10
0-10
0-10
0-10
0-10
0-10
0-10
0-10
Adjustable range of discharge opening (mm)
5-50
5-50
5-50
5-50
5-50
5-50
5-50
5-50
Cement Clinker(t/h)
10-30
1040
20-45
25-55
35-90
50-150
85-210
125-270
Limestone(t/h)
18-45
23-55
28-65
35-75
45-110
50-150
95-260
140-310
Power(kw)
4P   37KW
4P   45KW
4P   45KW
4P   55KW
6P   110KW
6P   160KW
4P   250KW
4P   315KW
Theoretical weight 3.9 4.5 6 10.5 14.4 22 35 49.7

Advantages

High efficiency: The design of the slab and the hard extrusion of the steel are used to improve fine crushing efficiency.

High operating rate & low power consumption: It is better than traditional roller crusher in power saving.

Long lifespan of the quick-wear part: The wearing parts are made of wear-resistant materials and are more durable.
