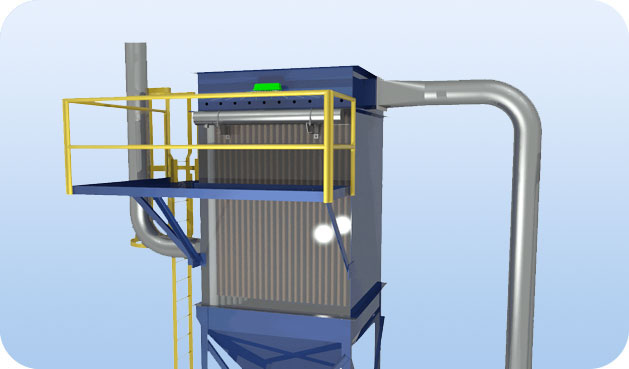

The DMC pulse single dust collector adopts the pulse blast cleaning technology, which overcomes the shortcomings of the conventional pulse dust collector and the compartment back-blowing dust collector.
DMC dust collector is suitable for dust removal and purification and material recovery of non-fibrous industrial dust in various working conditions. It has strong cleaning ability, long filter bag life, high dust removal efficiency, and low air leakage rate. Low consumption, small floor space, stable and reliable operation, and good economic benefits.

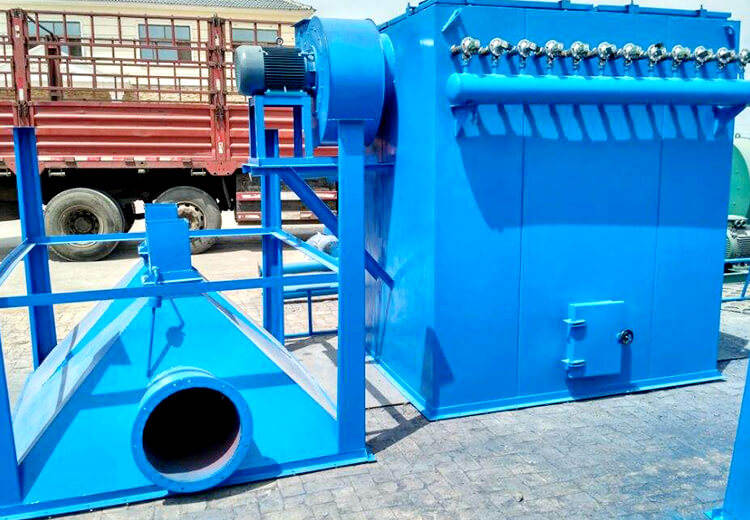

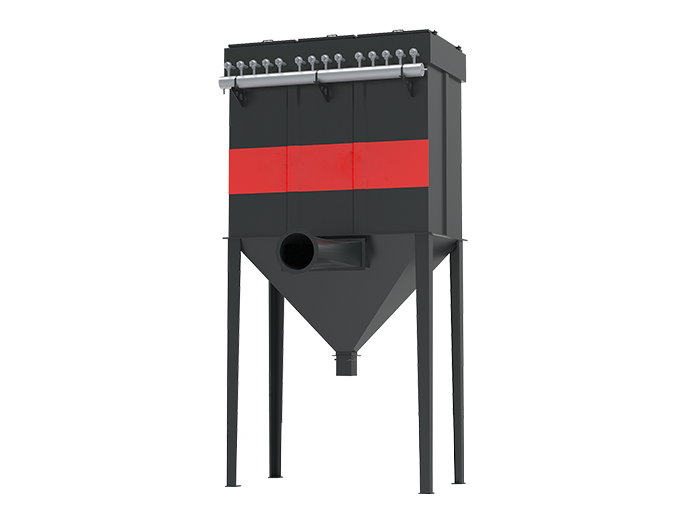

The DMC pulse single-stage dust collector is composed of a ash bucket, an upper box body, a middle box body, a lower box body and the like, and the upper, middle and lower tanks are compartment structures. This series of equipment has two types: one with an ash bucket and the other with no ash bucket.
Model | Filtering area (m²) |
Air volume (m³/h) |
Fan model | Fan motor | Number of filter bag | model of matched german raymond mill |
Note |
DMC24 | 18 | 1080~2160 | 4-72-3.2A | Y90L-2-1.5kw | 24 | ||
DMC36 | 27 | 1620~3240 | 4-72-3.6A | Y100L-2-3kw | 36 | HGM88 HGM95 | |
DMC48 | 36 | 2160~4320 | 4-68-4A | Y112M-2-4kw | 48 | HGM100 | |
DMC64 | 48 | 2880~5760 | 4-68-4A | Y112M-2-4kw | 64 | HGM130 HGM 120 | |
DMC80 | 60 | 3600~7200 | 4-72-4A | Y132S1-2-5.5kw | 80 | ||
DMC96 | 72 | 4320~8640 | 4-72-4.5A | Y132S2-2-7.5kw | 96 | HGM160 HGM175 | |
DMC112 | 84 | 5040~10800 | 4-72-4.5A | Y132S2-2-7.5kw | 112 | HGM190 | |
DMC128 | 96 | 5760~11520 | 4-72-4.5A | Y132S2-2-7.5kw | 128 | Selecting Based on Air Volume. More Dust, Lower Filter Wind Speed. |
|
8640~14400 | 4-72-5A | Y160M2-2-15kw | 128 | ||||
DMC150 | 112.5 | 6750~13500 | 4-72-5A | Y160M2-2-15kw | 150 | ||
10000~20000 | 4-68-6.3C | Y180M2-2-22kw | 150 | ||||
DMC180 | 135 | 12000~24000 | 4-72-8C | Y200L-2-30kw | 180 | Multipe Dust Collection & Location Timing. A Settling Room is a Must. |
|
DMC220 | 165 | 15000~34000 | 7-72-8C | Y200L2-2-37kw | 220 |
Long cleaning cycle, low energy consumption: The use of the pulse blast cleaning method can achieve the purpose of thorough cleaning once.
Firm and reliable, long service life: DMC dust collector filter bag mouth sealing performance is good, firm and reliable. The filter bag keel is polygonal, which reduces friction and prolongs the life of the bag.
Good sealing performance and low air leakage rate: The DMC dust collector box adopts the airtight design, good sealing performance, excellent sealing material for inspection door, the air leakage rate is very low by leak detection with kerosene.
