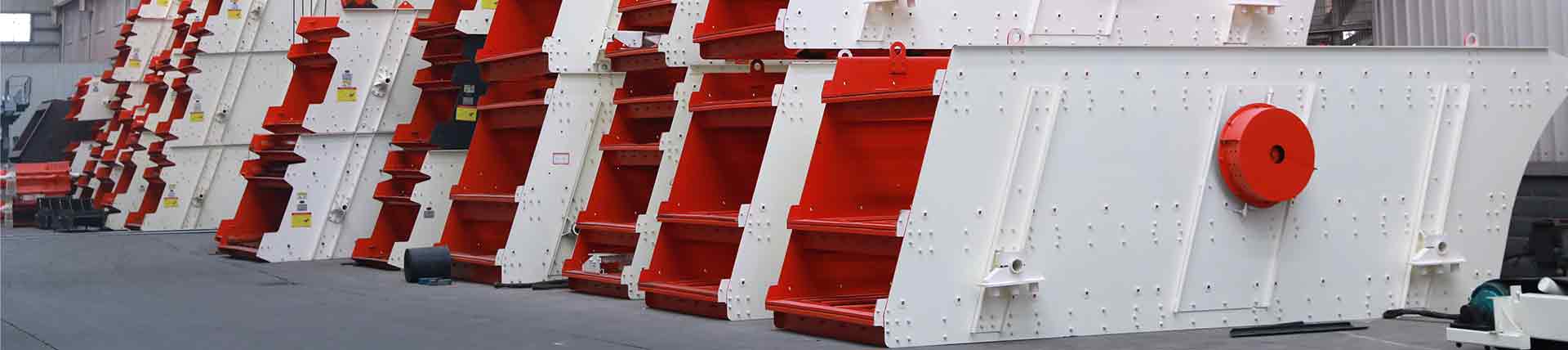

Vibrating Screen

Vibrating screen does circular movement in work, and it is a new high efficiency vibrating screen machine with multiple layers. It is used for minerals particle size grading, necessary in mining, quarry and construction industries.

Applications

Function

For stones ores granding and screening, getting required particle size.

Fields

Used in mining, quarry, construction, road, recycling, etc.

Minerals Processed

over 120 kinds of stones and metallic ores.

Processing Materials of Vibrating Screen

It is widely used for screening of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

  • undefined0-10mm
  • undefined10-20mm
  • undefined20-40mm
  • Finished Product
undefined

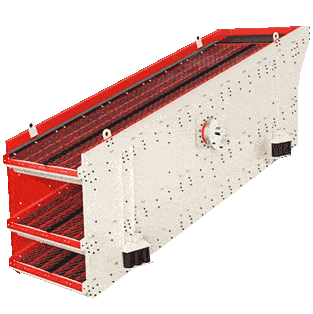

Working Principle of Vibrating Screen

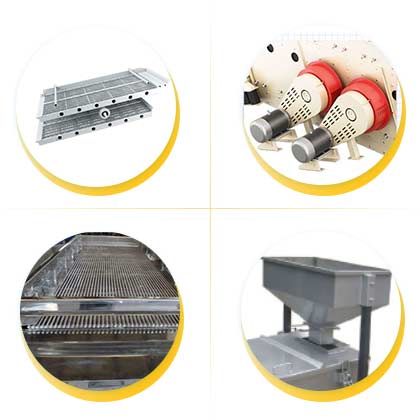

The vibrating screen is mainly composed of a screen box, a vibration exciter, a suspension (or support) device and a motor. The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box is vibrated due to the centrifugal inertia force of the unbalanced weight on the exciter. By changing the eccentric shaft of the exciter, different amplitudes can be obtained.

1

Advantages of Vibrating Screen

High screening efficiency

Due to the strong vibration of the screen box, the problems of material blocking the screen holes is reduced, so that the screen has a higher screening efficiency and productivity.

Simple structure, easy operate

The structure is simple and the screen surface is easy to disassemble and replace.

Long service life

A small amount of wearable parts are made of super hard and wear-resistant materials, which is especially suitable for easy replacement of accessories.

1
1

Hot Issues of Vibrating Screen

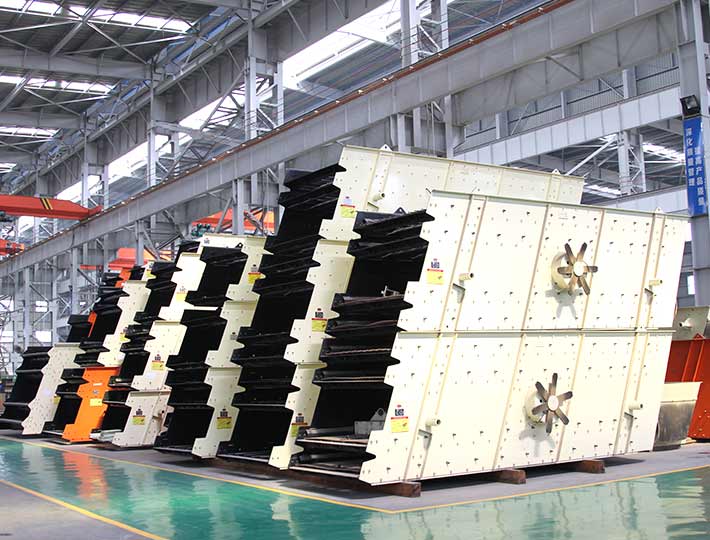

We have small, medium and large vibrating screen for sale. Professional team will provide customized solution according to your needs.

Hot Sale Models of Vibrating Screen

2YK1230, 3YK1230, 2YK1237, suitable for small prodution scale.

3YK1854, 4YK1854, 2YK2160, suitable for medium and large production scale.

Hot Sale Production Capacity of Jaw Crusher

10-20m³/h, 20-50m³/h, etc, usually for small production scale, with low costs.

60-100m³/h, 100-150m³/h, 250-300m³/h, etc, usually for medium and large production scale.

The estimated price of the service

Product price: Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Vibrating Screen

Vibrating Screen

Model Sieve
layer		 Sieve
area
(m²)		 Mesh
size
(mm)		 Max.
feeding
size
(mm)		 Processing
 capacity
(m³/h)		 Vibrating
Frequency
(r/min)		 Double
amplitude
(mm)		 Motor
power
(kw)		 Sieve
obliquity
(°)		 Sieve
specification
(mm)		 >Dimensions
(L×W×H)
(mm)
2YK1230 2 7.2 4-50 200 12-78 800-970 6 6P   7.5KW 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 200 13-80 800-970 6 6P   7.5KW 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 200 15-86 800-970 6 6P   7.5KW 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 200 16-90 800-970 6 6P   7.5KW 20 1200×3700 4270×1860×1210
2YK1548 2 14.4 5-50 200 22.5-162 800-970 6 6P   11KW 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 200 22.5-162 800-970 6 6P   15KW 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 200 22.5-162 800-970 6 6P   18.5KW 20 1500×4800 6230×2210×2060
2YK1854 2 19.44 5-80 200 32-312 800-970 6 6P   22KW 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 200 32-312 800-970 6 6P   22KW 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 200 32-336 800-970 6 6P  22KW 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 200 50-475 970 6 6P   30KW 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 200 50-475 970 6 6P  30KW 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 200 50-497 970 6 6P   37KW 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 200 65-550 970 6 6P   30KW 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 200 70-620 970 6 6P   37KW 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 200 80-680 970 6 6P   45KW 20 2400×6000 7600×3140×2380
2YK2866 2 31 5-100 200 70-650 970 6 6P   37KW 20 2800×5600 6650×4320×1620
3YK2866 3 47 5-100 200 80-700 970 6 6P   45KW 20 2800×5600 6650×4320×2120
4YK2866 4 62 5-100 200 90-750 970 6 6P   55KW 20 2800×5600 6650×4320×2620
2YK2870 2 39.2 5-100 200 70-680 750 6 8P   22×2KW 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 200 80-720 750 6 8P   22×2KW 20 2800×7000 7800×4320×2120
Model Sieve Layer Sieve Obliquity
(°)		 Motor Power
(kw)		 Vibrating Frequency
(r/min)		 Max.Feeding Size
(mm)		 Production(t/h) Dimensions(mm)
（L×W×H）
2FTM1545 2 18 15 780-900 200 45-500 5380×2295×1410
3FTM1545 3 18 15 780-900 200 55-500 5575×2295×1990
4FTM1545 4 18-20 18.5 780-900 200 65-500 5765×2295×1990
2FTM1855 2 18 18.5 780-900 200 55-600 5680×2565×1450
3FTM1855 3 18 22 780-900 200 65-600 5900×2460×2110
4FTM1855 4 18-23 22 780-900 200 75-600 6030×2565×2500
2FTM2165 2 18 30 780-900 200 65-700 7160×2990×1690
3FTM2165 3 18 30 780-900 200 75-700 7380×2990×2365
4FTM2165 4 18-23 37 780-900 200 85-700 7430×2990×2550
2FTM2465 2 18 37 780-900 200 80-800 7160×3290×1690
3FTM2465 3 18 37 780-900 200 90-800 7380×3290×2365
4FTM2465 4 18-23 37 780-900 200 100-800 7430×3290×2500
2FTM2765 2 18 37 780-900 200 100-900 7180×3570×1805
3FTM2765 3 18 45 780-900 200 110-900 7390×3570×2445
4FTM2765 4 18-23 45 780-900 200 120-900 7480×3570×2715
2FTM3065 2 18 37 780-900 200 110-1200 7180×3870×1805
3FTM3065 3 18 45 780-900 200 120-1200 7390×3870×2445
4FTM3065 4 18-23 45 780-900 200 130-1200 7480×3870×2715
2FTM3075 2 18 22×2 780-900 400 120-1300 8700×4055×1980
3FTM3075 3 18 37×2 780-900 400 130-1300 8940×4120×2720

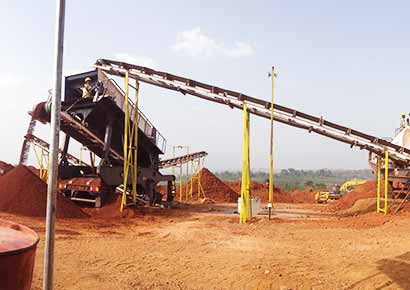

Related Projects of Vibrating Screen
