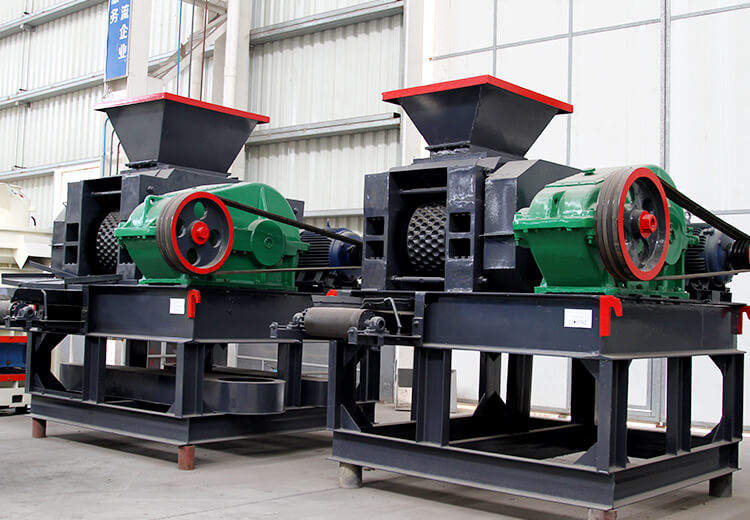

Ball Press Machine

The ball press machine is a mechanical device capable of pressing and pressing powdery materials through high-pressure roll pressing and has the characteristics of compact structure, high ball formation rate, and energy saving. The material after pressing and forming by the ball press machine is energy-saving, environmentally friendly and easy to transport, improves the utilization rate of waste, and has good economic and social benefits.

Are you interested in our machines? Get Quotation
Ball Press Machine

Why FTM Ball Press Machine ?

The ball press machine can be used to press powdered materials such as coal powder, charcoal powder, coal slurry, coal slag, coke powder, carbon powder, etc., and is widely used in coal briquettes plant, steel mills, power plants, chemical plants, cement plants, etc. and metallurgical, chemical, energy, heating and other industries.

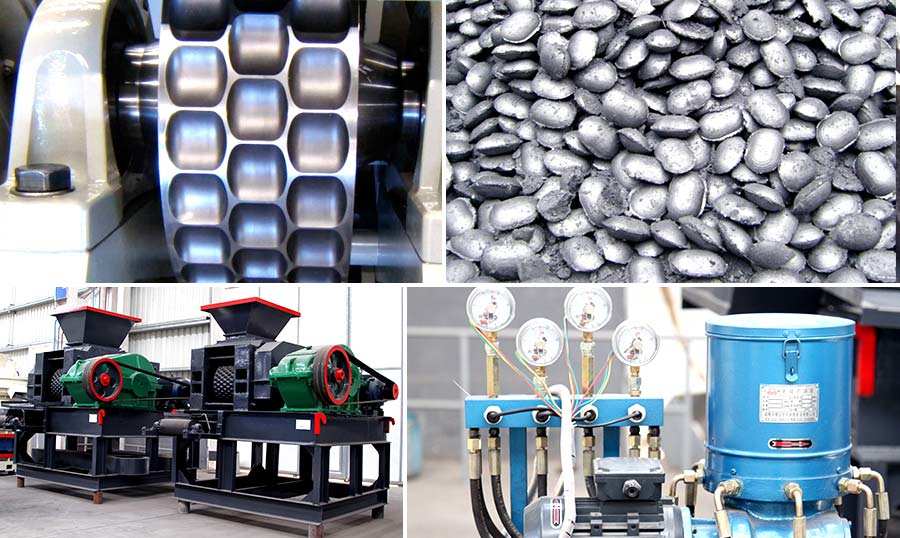

The main part of the ball press machine adopts high-quality alloy steel material to greatly improve the wear resistance and pressure resistance so that the machine has a long service lifespan. Depending on the region, the shape of the molding ball is different, and the shape of the ball formed by the customer in the dry powder ball press is also different. Common molding shapes are square shape, ball egg type, ellipse type, goose egg type, pillow type and the like. The user can customize the specific size and the special shape of the ball according to their own needs.

Technical Data

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156

Advantages

High pressure and high ball formation rate;

Energy saving, environmental protection, no pollution and no noise;

Stable rotation speed, a high molding rate, and uniform particle size;

The molding system is stable and safe and does not require excessive post-maintenance work.
