Sand Dryer

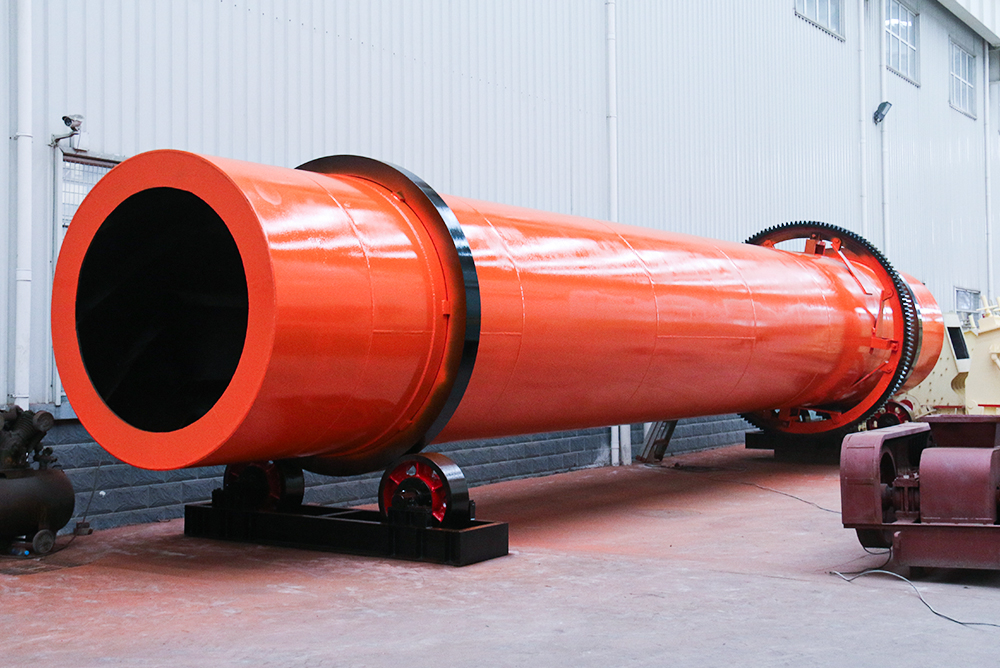

Sand dryer is also called river sand dryer. It is a new type of equipment developed by our company to absorb foreign advanced equipment development experience. It is suitable for large, medium and small-scale drying sand plant and other places.

Are you interested in our machines? Get Quotation
Sand Dryer
Welcome to Visit Factory

Why FTM Sand Dryer ?

The sand dryer is used for the drying of granular materials such as river sand, yellow sand, river sand, sea sand, quartz sand, copper iron ore, etc., which are relatively large in wetness and relatively large in proportion, and are commonly used in building materials, metallurgy, chemical, coal and other industries.

The dryer has a large processing capacity, low fuel consumption, and low drying cost. The dryer has the characteristics of high-temperature resistance and can quickly dry materials with high-temperature hot air. The scalability is strong, the design considers the production margin, and even if the output is increased by a small amount, there is no need to replace the equipment. The equipment adopts a self-aligning tug structure, and the cooperation between the tug and the rolling ring greatly reduces wear and power consumption. The specially designed retaining wheel structure greatly reduces the horizontal thrust caused by the tilting of the equipment, which has a strong anti-overload capability, stable cylinder operation, and high reliability.

Technical Data

Rotary Dryer

Indirect Heat Transfer Dryer

Spec./m Shell Cubage Capacity(t/h) Installation(%) Highest Inlet Air Temperature Main Motor Weight(t)
Φ 1.2×8 9 1.9-2.4 3-5 700-800 7.5 9
Φ1.2 ×10 11.3 2.4-3 3-5 700-800 7.5 11
Φ 1.5×12 21.2 4.5-5.7 3-5 700-800 15 18.5
Φ 1.5×14 24.7 5.3-6.6 3-5 700-800 15 19.7
Φ1.5×15 26.5 5.7-7.1 3-5 700-800 15 20.5
Φ 1.8×12 30.5 6.5-8.1 3-5 700-800 18.5 21.5
Φ 1.8×14 35.6 7.6-9.5 3-5 700-800 18.5 23
Φ 2.2×12 45.6 9.7-12.2 3-5 700-800 22 33.5
Φ 2.2×14 53.2 11.4-14.2 3-5 700-800 22 36
Φ 2.2×16 60.8 13-16.2 3-5 700-800 22 38
Φ 2.4×14 63.3 13.5-16.9 3-5 700-800 37 45
Φ 2.4×18 81.4 17.4-21.7 3-5   37 49
Φ 2.4×20 90.4 19.3-24.1 3-5 700-800 45 54
Φ 2.4×22 99.5 21.2-26.5 3-5 700-800 45 58
Φ 2.6×24 127.4 27.2-34 3-5 700-800 55 73
Φ 3×20 141.3 30.1-37.7 3-5 700-800 75 85
Φ 3×25 176.6 37.7-47.1 3-5 700-800 75 95
Φ 3.2×25 201 42.9-53.6 3-5 700-800 90 110
Φ 3.6×28 285 60.8-76 3-5 700-800 160 135
Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15

Advantages

High thermal efficiency: Most of the heat supplied in the drum is used for moisture vaporization of the material, and the thermal efficiency is 80% to 90%.

The drying rate is large: the temperature gradient of the wall is large, so that the surface of the film maintains a high evaporation intensity, generally up to 30-70 kg/(m2.h).

Stable drying quality: Since the heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the partition wall can be kept relatively stable, so that the quality of the product can be guaranteed.
