Brief Introduction

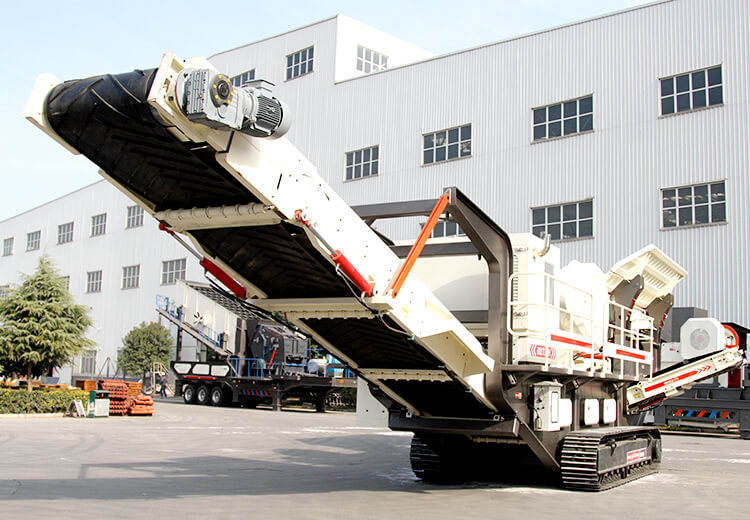

Crawler mobile crusher is a type of mobile equipment used for crushing and screening various stones and construction debris. It features a crawler chassis that enables free movement on different terrains and is equipped with a crusher and a screening mechanism. Crawler mobile crushers are commonly used in mines, quarries, construction sites, and waste treatment plants. They can crush and screen raw large stones or waste materials to produce the desired fine particles or specific sizes of stones.

Working Principle

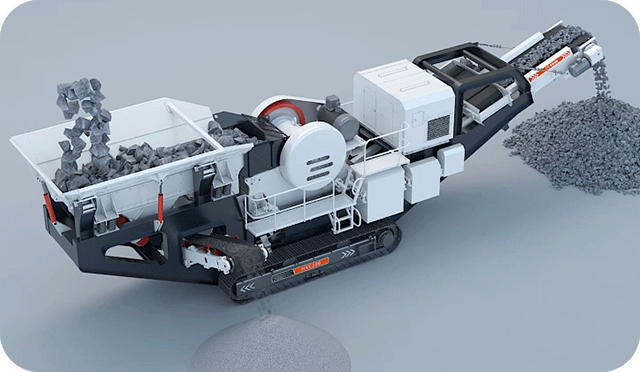

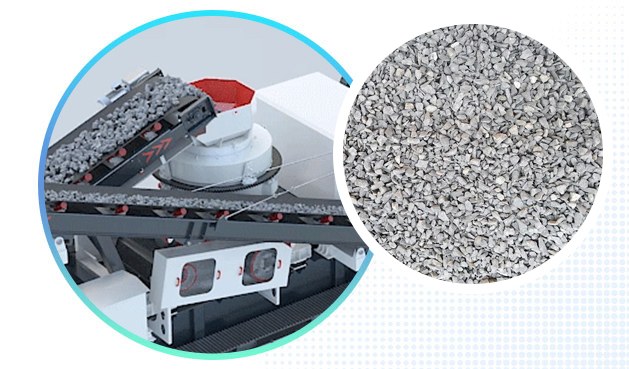

The crusher is one of the main components of a crawler mobile crusher and is used to crush raw materials into the required sizes. Common types of crushers include jaw crushers, impact crushers, and cone crushers, among others. The selection of the crusher depends on the hardness of the raw material and the desired final product size. The screening mechanism is used to separate the crushed materials into different particle sizes. It helps classify particles of different sizes, enabling the separation of products that meet the requirements and further processing or exclusion of particles that are too large or too small.

Learn More

Advantages

Service Guarantees

Technical Data

Model WT96 WT106 WT120
Dimensions of Transmission Devices Length 14200mm 14900mm 15200mm
Width 2900mm 3000mm 3200mm
Height 3470mm 3600mm 3700mm
Weight 38t 50t 65t
Feeder Hopper Volume 5m³ 5m³ 6m³
Loading Height 3900mm 4100mm 4300mm
FeederModel GZDT3895 GZDT1145 GZDT1245
Unearthed Belt Conveyors Dimensions
(Width×Length)
800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Crusher Model CJ96 CJ106 CJ120
Inlet Dimensions 930×580mm 1060×700mm 1200×870mm
Max.Feeding Size 480mm 560mm 700mm
Main Belt Conveyor Dimensions
(Width×Length)
800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Iron Remover Model RCYQ-8 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 112.9kw 141.4kw 196.2kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions
(Width×Length)
650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions
(Width×Length)
1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power 6.12kw 6.12kw
Sieve Dimensions 1500×3600 1500×4200
Belt Conveyors at the Bottom Dimensions
(Width×Length)
1000×5800mm 1000×6200mm
Dumping Height 2900mm 3000mm
Transferring Belt Conveyor Dimensions
(Width×Length)
650×2500mm 650×2800mm
Dumping Height 1400mm 1400mm
Belt Conveyors for Discharging Material Dimensions
(Width×Length)
500×8000mm 500×9200mm
Dumping Height 4200mm 4500mm
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model WT160SC WT250SC WT300HPM WT400HPM
Dimensions of Transmission Devices Length 16800mm 19000mm 19000mm 19500mm
Width 3500mm 3600mm 3900mm 3900mm
Height 3700mm 3800mm 3800mm 3800mm
Weight 50t 60t 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³ 3m³ 3m³
Loading Height 2600m 2600m 2600m 2800m
Loading Width 1900mm 1900mm 1900mm 1900mm
Dimensions
(Width×Length)
1000×6300mm 1000×6300mm 1000×6300mm 1200×6500mm
Crusher Model SC160 SC250 HP300 HP400
Inlet Dimensions 75-360mm 75-450mm 60-200mm 68-280mm
Max.Feeding Size 360mm 450mm 200mm 280mm
Min. Discharging Size 8-25mm 8-35mm 8-45mm 8-51mm
Main Belt Conveyor Dimensions
(Width×Length)
1000×9000mm 1000×10000mm 1000×10000mm 1000×11000mm
Dumping Height 3100mm 3490mm 3490mm 3690mm
Secondary Screen Dumping Height 4200mm 4200mm 4400mm 4400mm
Model HX1536 HX1536 HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions
(Width×Length)
1000×5600mm 1000×5600mm 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions
(Width×Length)
650×2100mm 650×2100mm 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions
(Width×Length)
650×10000mm 650×10000mm 650×11000mm 650×11000mm
Dumping Height 4200mm 4200mm 4400mm 4400mm
Diesel Engine Power 96kw 132kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 297.12kw 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model ST673 ST993 ST1303
Dimensions of
Transmission Devices
Length 11000mm 12500mm 12500mm
Width 3800mm 4000mm 4000mm
Height 3800mm 3900mm 3900mm
Weight 28t 33t 38t
Feeding Belt Conveyor Dimensions
(Width×Length)
1000×10000mm 1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm 2700mm
Vibrating Screen Model 3HX1545 3HX1855 3HX2160
Sieving Layers 3 3 3
Belt Conveyor Dimensions
(Width×Length)
1000×7400mm 1000×7500mm 1000×7500mm
Discharging Height 3380mm 3460mm 3460mm
Belt Conveyor for
Coarse Material
Dimensions
(Width×Length)
500×5600mm 650×5800mm 650×5800mm
Discharging Height 3430mm 3570mm 3570mm
Belt Conveyor for
Medium-Sized Material
Dimensions
(Width×Length)
500×5300mm 650×5400mm 650×5400mm
Discharging Height 3150mm 3250mm 3250mm
Belt Conveyor
for Fine Material
Dimensions
(Width×Length)
500×5600mm 650×5800mm 650×5800mm
Discharging Height 3030mm 3080mm 3080mm
Transferring Belt Conveyors Dimensions
(Width×Length)
500×2000mm 650×2000mm 650×2000mm
Discharging Height 2130mm 2130mm 2130mm
Diesel Engine Power 75kw 75kw 96kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 54kw 57.5kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Related Products

Cases and Price

Our Crawler-type Mobile Crusher has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote
